AK2PAF1-156.2500T footprint, schematic symbol and 3D model by ABRACON

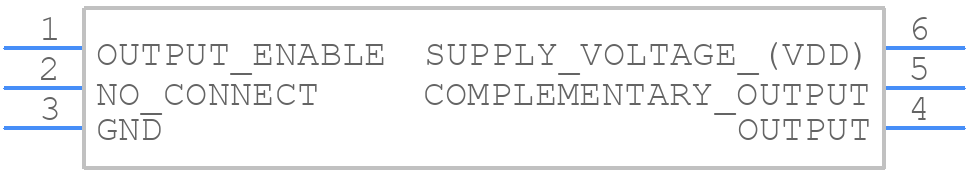

Symbol

PCB Footprints

3D Models

AK2PAF1-156.2500T Details

Abracon recommends a 4-layer PCB with a solid ground plane and a separate power plane for the oscillator. The oscillator should be placed close to the crystal and the capacitors should be placed as close as possible to the oscillator pins.
To ensure reliable startup, Abracon recommends a power-up ramp time of 1-2 ms, and a power supply voltage of at least 1.8V. Additionally, the oscillator should be decoupled with a 10nF capacitor between VCC and GND.
The AK2PAF1-156.2500T is rated for operation from -40°C to +85°C. However, it's recommended to derate the frequency tolerance by 5 ppm/°C for temperatures above 70°C.
Yes, the AK2PAF1-156.2500T is designed to operate in humid environments. However, it's recommended to follow proper PCB design and assembly guidelines to prevent moisture ingress and ensure reliable operation.
Check the power supply voltage, ensure the oscillator is properly decoupled, and verify the PCB layout meets the recommended guidelines. Also, check for any damage to the oscillator or crystal during handling or assembly.

Community Provided

System Verified

Community Approved

Use the download button to access the AK2PAF1-156.2500T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AK2PA, or try a keyword search, such as XO
