AK3ADDF1-156.2500T3 footprint, schematic symbol and 3D model by ABRACON

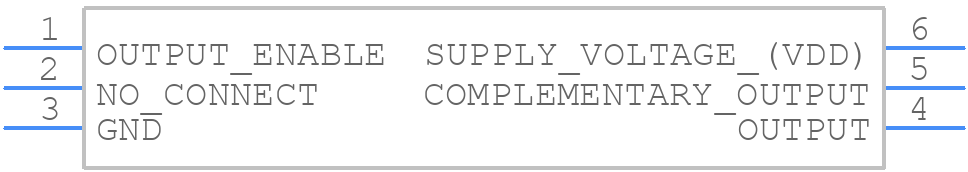

Symbol

PCB Footprints

3D Models

AK3ADDF1-156.2500T3 Details

Manufacturer Part Number:
AK3ADDF1-156.2500T3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; DIFFERENTIAL OUTPUT
Fall Time-Max:
0.4 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
156.25 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Equivalence Code:
LCC6,.1X.12,59/47
Physical Dimension:
3.2mm x 2.5mm x 1.0mm
Rise Time-Max:
0.4 ns
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.375 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

Abracon recommends following a 4-layer PCB stack-up with a solid ground plane on the bottom layer, and using a microstrip or stripline configuration for the transmission lines. Additionally, keeping the signal traces short and away from noise sources is crucial for optimal performance.
The AK3ADDF1-156.2500T3 is designed to operate within a temperature range of -40°C to +85°C. Abracon recommends following proper thermal management practices, such as using thermal vias and heat sinks, to ensure reliable operation. The device can withstand thermal stress up to 260°C for 30 seconds during reflow soldering.
Abracon recommends using a reflow soldering process with a peak temperature of 260°C for 30 seconds. The device is compatible with Pb-free soldering processes, and it's essential to follow the recommended soldering profile to ensure reliable connections.
The AK3ADDF1-156.2500T3 is designed for high-frequency applications up to 1.5 GHz. To ensure optimal performance, Abracon recommends using a 50-ohm transmission line, keeping the signal traces short and away from noise sources, and using a ground plane to reduce electromagnetic interference (EMI).
Abracon recommends using a 10nF to 100nF decoupling capacitor with a 0.1uF to 1uF bulk capacitor to ensure stable power supply operation. The decoupling capacitors should be placed as close as possible to the device's power pins.
