AK3BHDF1-156.2500T footprint, schematic symbol and 3D model by ABRACON

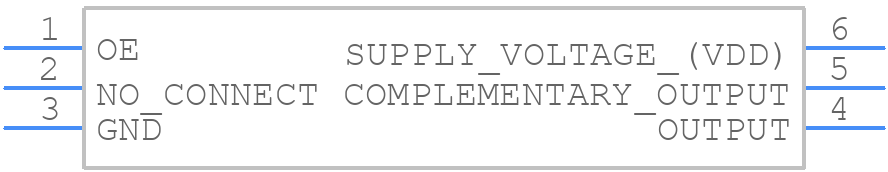

Symbol

PCB Footprints

3D Models

AK3BHDF1-156.2500T Details

Manufacturer Part Number:
AK3BHDF1-156.2500T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
ENABLE/DISABLE FUNCTION; COMPLEMENTARY AND DIFFERENTIAL OUTPUT
Fall Time-Max:
0.6 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
156.25 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
HCSL
Output Load:
50 OHM
Package Equivalence Code:
LCC6,.1X.12,59/47
Physical Dimension:
3.2mm x 2.5mm x 1.0mm
Rise Time-Max:
0.6 ns
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.375 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

The operating temperature range of the AK3BHDF1-156.2500T is -40°C to +85°C.
Yes, the AK3BHDF1-156.2500T is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
The typical power consumption of the AK3BHDF1-156.2500T is around 10mA to 20mA, depending on the load capacitance and operating conditions.
Yes, the AK3BHDF1-156.2500T is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality construction and rigorous testing.
The recommended PCB layout for the AK3BHDF1-156.2500T involves keeping the oscillator circuitry away from noise sources, using a solid ground plane, and minimizing trace lengths and impedance mismatches.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AK3BHDF1-156.2500T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AK3BH, or try a keyword search, such as XO
