Part Image

AK4552VT - Asahi Kasei Microdevices

Description: IC STEREO CODEC 24BIT 16TSSOP - S/(N+D): 89dB@VA=3.0V 2.4 ~ 4.0V,14mA -40 ~ 85℃

Download AK4552VT Model

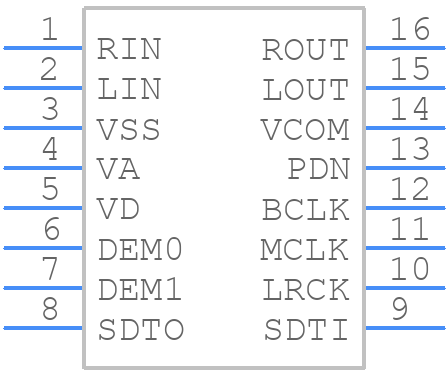

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AK4552VT - Asahi Kasei Microdevices PCB footprint - Small Outline Packages - Small Outline Packages - 16pin TSSOP_2025
click to zoom
3D Models
AK4552VT - Asahi Kasei Microdevices  - 3D model - Small Outline Packages - 16pin TSSOP_2025
click to zoom

AK4552VT Details

  • Manufacturer Part Number:

    AK4552VT

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Asahi Kasei Microsystems Corporation

  • YTEOL:

    0

  • Analog Input-Max:

    2.05 V

  • Filter:

    YES

  • Input Code:

    TWOS COMPLEMENT

  • Input Type:

    SINGLE-ENDED

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    5 mm

  • Linear Coding:

    24-BIT

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    VOLTAGE

  • Output Code:

    TWOS COMPLEMENT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    PCM CODEC

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AK4552VT Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the analog power supply (AVDD) and then the digital power supply (DVDD). This ensures that the analog circuitry is stable before the digital circuitry is powered on.
  • To optimize the AK4552VT for low-power operation, set the clock frequency to the lowest possible value, disable any unused features, and adjust the power management registers to minimize power consumption. Additionally, consider using the device's built-in power-down modes to reduce power consumption when not in use.
  • The maximum clock frequency that can be used with the AK4552VT is 192 kHz. However, the actual clock frequency used may need to be adjusted based on the specific application and system requirements.
  • To ensure that the AK4552VT's ADC is properly calibrated, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the ADC's offset and gain registers accordingly.
  • To minimize noise and interference, it is recommended to separate the analog and digital signal traces on the PCB, and to use a ground plane to shield the analog signals. Additionally, use a low-pass filter to filter out high-frequency noise on the analog input signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AK4552VT Overview

Use the download button to access the AK4552VT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AK455, or try a keyword search, such as Codecs
