The recommended power-on sequence is to first apply the analog power supply (AVDD) and then the digital power supply (DVDD). This ensures that the analog circuitry is stable before the digital circuitry is powered on.
To optimize the AK4556VT's performance for low-power applications, use the power-down mode, reduce the clock frequency, and adjust the analog gain settings. Additionally, consider using the AK4556VT's built-in low-power modes, such as the 'Low Power Mode' or 'Power Down Mode'.
The maximum clock frequency supported by the AK4556VT is 192 kHz. However, the recommended clock frequency is 176.4 kHz or 192 kHz for optimal performance.
To configure the AK4556VT's ADC for optimal performance, set the ADC clock frequency to 2.048 MHz, and adjust the ADC gain settings according to the input signal level. Additionally, ensure that the analog input signal is properly filtered and biased.
To minimize noise and interference, separate the analog and digital signal traces, and use a ground plane to shield the analog signals. Additionally, use a decoupling capacitor between the power supply pins and the ground pin to reduce noise.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AK4556VT Overview

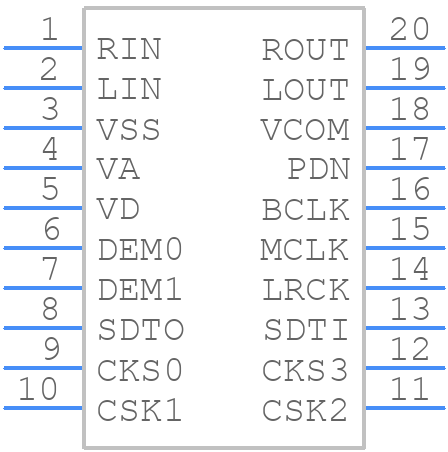

Use the download button to access the AK4556VT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AK455,
or try a keyword search, such as Other Consumer ICs
