AK5DAF1-100.0000T2 footprint, schematic symbol and 3D model by ABRACON

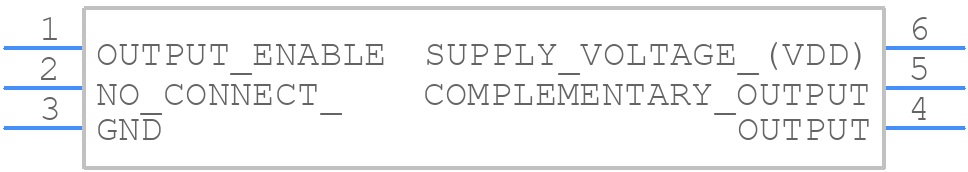

Symbol

PCB Footprints

3D Models

AK5DAF1-100.0000T2 Details

Abracon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to ensure the oscillator's reliability and performance.
The AK5DAF1-100.0000T2 is designed to operate within an industrial temperature range of -40°C to 85°C. While it can tolerate high temperatures, its frequency stability and accuracy may degrade above 70°C. It's crucial to consider thermal management and heat dissipation in your design.
Abracon recommends using a 10nF to 100nF decoupling capacitor with a voltage rating of 10V or higher, placed as close as possible to the oscillator's power pins. This helps to filter out noise and ensure stable operation.
Yes, the AK5DAF1-100.0000T2 can operate with a 3.3V power supply. However, ensure that your design meets the oscillator's minimum operating voltage of 2.7V and maximum operating voltage of 3.6V.
To ensure reliable startup, Abracon recommends applying power to the oscillator's VCC pin before applying a clock signal to the CLK pin. Additionally, ensure that the power supply is stable and free from noise.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AK5DAF1-100.0000T2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AK5DA, or try a keyword search, such as XO
