Part Image

AK5DAF1-125.0000T2 - ABRACON

Description: Clear Clock Ultra-Low Jitter 5.0 x 3.2mm XO, LVDS, 3.3V, ±25 ppm over -40°C to +85°C, OE Pin 1; Active High

Download AK5DAF1-125.0000T2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

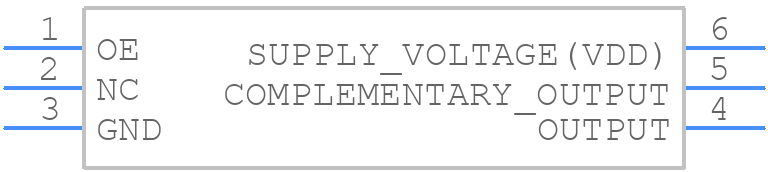

Symbol
AK5DAF1-125.0000T2 - ABRACON - PCB symbol
click to zoom
PCB Footprints
AK5DAF1-125.0000T2 - ABRACON PCB footprint - Other - Other - AK5DAF1-125.0000T2-3
click to zoom
3D Models
AK5DAF1-125.0000T2 - ABRACON - 3D model - Other - AK5DAF1-125.0000T2-3
click to zoom

AK5DAF1-125.0000T2 Details

  • Manufacturer Part Number:

    AK5DAF1-125.0000T2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT

  • Fall Time-Max:

    0.4 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    125 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Package Equivalence Code:

    SOLCC6,.12

  • Physical Dimension:

    5.0mm x 3.2mm x 1.2mm

  • Rise Time-Max:

    0.4 ns

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AK5DAF1-125.0000T2 Frequently Asked Questions (FAQs)

  • Abracon recommends a soldering temperature profile with a peak temperature of 240°C to 250°C, with a dwell time of 1-2 seconds. However, it's essential to consult the specific soldering guidelines provided by Abracon or consult with their technical support team for more detailed information.
  • The AK5DAF1-125.0000T2 oscillator is designed to handle power-up and power-down sequences without any specific requirements. However, it's recommended to follow a gradual power-up and power-down sequence to prevent any potential damage to the device. A soft-start power-up sequence is recommended to prevent inrush currents.
  • Abracon provides a recommended PCB layout and land pattern for the AK5DAF1-125.0000T2 oscillator. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and to prevent any potential electrical noise issues.
  • The AK5DAF1-125.0000T2 oscillator is designed to operate in a temperature range of -40°C to 85°C. However, it's essential to consult Abracon's environmental testing and validation data to ensure the device meets the specific requirements of your application. Additionally, it's recommended to consult with Abracon's technical support team for custom testing and validation.
  • The lead time and availability for AK5DAF1-125.0000T2 may vary depending on the region, distributor, and quantity. It's recommended to check with authorized distributors or Abracon's sales team for the most up-to-date information on lead time and availability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AK5DAF1-125.0000T2 Overview

Use the download button to access the AK5DAF1-125.0000T2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AK5DA, or try a keyword search, such as XO
