AK5DAF1-148.5000T2 - ABRACON

Description: Clear Clock Ultra-Low Jitter 5.0 x 3.2mm XO, LVDS, 3.3V, ±25 ppm over -40°C to +85°C, OE Pin 1; Active High

Download AK5DAF1-148.5000T2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

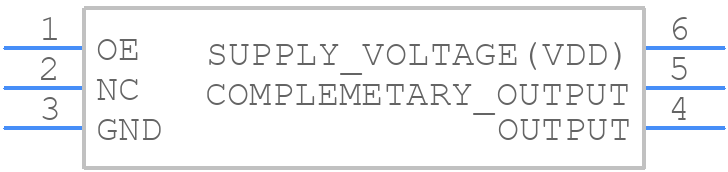

AK5DAF1-148.5000T2 - ABRACON - PCB symbol
click to zoom
PCB Footprints
AK5DAF1-148.5000T2 - ABRACON PCB footprint - Other - Other - AK5DAF1-148.5000T2
click to zoom
3D Models
AK5DAF1-148.5000T2 - ABRACON - 3D model - Other - AK5DAF1-148.5000T2
click to zoom

AK5DAF1-148.5000T2 Details

  • Manufacturer Part Number:

    AK5DAF1-148.5000T2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT

  • Fall Time-Max:

    0.4 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    148.5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Package Equivalence Code:

    SOLCC6,.12

  • Physical Dimension:

    5.0mm x 3.2mm x 1.2mm

  • Rise Time-Max:

    0.4 ns

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AK5DAF1-148.5000T2 Frequently Asked Questions (FAQs)

  • Abracon recommends a specific land pattern and PCB layout to ensure optimal performance and minimize parasitic effects. It's essential to follow the recommended layout to achieve the specified frequency stability and accuracy.
  • The ESR of the oscillator can impact the overall circuit performance, particularly in terms of noise and jitter. Abracon's AK5DAF1-148.5000T2 has a specified ESR of <50 ohms, which ensures minimal impact on the circuit's overall performance.
  • The recommended drive level for the AK5DAF1-148.5000T2 is 1.8V ± 0.1V. Operating the oscillator outside of this range may affect the output signal's amplitude, frequency stability, and overall performance.
  • The AK5DAF1-148.5000T2 is specified to operate within a temperature range of -40°C to +85°C. Operating the oscillator outside of this range may affect its frequency stability and accuracy, potentially leading to deviations from the specified frequency.
  • Abracon recommends storing the AK5DAF1-148.5000T2 in a dry, cool place, away from direct sunlight and moisture. Handling the oscillator by the edges and avoiding touching the pins can prevent damage and ensure optimal performance.
