Abracon recommends a symmetrical PCB layout with a solid ground plane, and the oscillator should be placed as close as possible to the microcontroller or IC. A minimum of 2-layer PCB is recommended, with the oscillator on the top layer and the ground plane on the bottom layer.
Abracon recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the oscillator's input and output pins to prevent damage from electrostatic discharge. Additionally, handling the device with an anti-static wrist strap or mat can help prevent ESD damage.
The AK5DBF1-200.0000T2 has an operating temperature range of -40°C to +85°C, but it's recommended to operate within -20°C to +70°C for optimal performance and stability.
Yes, the AK5DBF1-200.0000T2 is designed to operate in high-vibration environments, but it's recommended to follow Abracon's guidelines for vibration testing and to ensure the oscillator is properly mounted and secured to the PCB.
To troubleshoot issues, check the oscillator's power supply, ensure proper PCB layout and routing, verify the load capacitance, and check for any signs of physical damage or contamination. If issues persist, contact Abracon's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AK5DBF1-200.0000T2 Overview

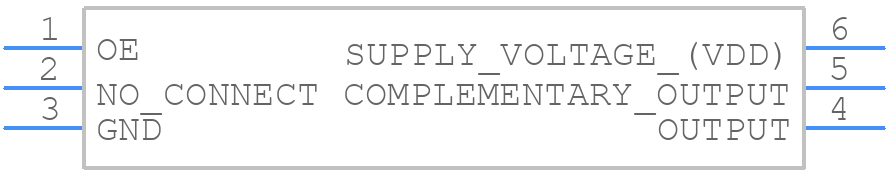

Use the download button to access the AK5DBF1-200.0000T2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AK5DB,
or try a keyword search, such as XO
