AK5DCF1-100.0000T2 - ABRACON

Description: Oscillator XO 100MHz ±50ppm LVDS 55% 1.8V 6-Pin SMD T/R

Download AK5DCF1-100.0000T2 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AK5DCF1-100.0000T2 model

Email notifications will be applied after download.

Send part feedback

Symbol

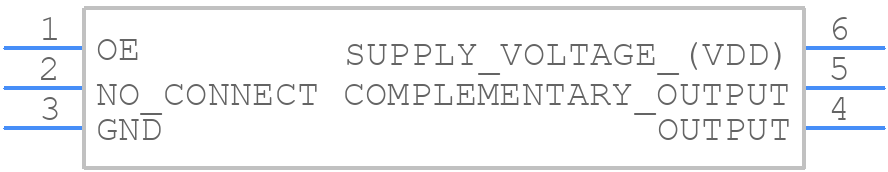

AK5DCF1-100.0000T2 - ABRACON - PCB symbol

PCB Footprints

AK5DCF1-100.0000T2 - ABRACON PCB footprint - Other - Other - AK5DCF1-100.0000T2

3D Models

AK5DCF1-100.0000T2 - ABRACON - 3D model - Other - AK5DCF1-100.0000T2

Datasheet Download Datasheet
Stock & Prices Price & Stock for AK5DCF1-100.0000T2
Part Number AK5DCF1-100.0000T2
Manufacturer ABRACON
Pin Count 6
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - AK5DCF1-100.0000T2
Released Date Apr 22, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

AK5DCF1-100.0000T2 Details

Manufacturer Part Number:
AK5DCF1-100.0000T2
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT
Fall Time-Max:
0.5 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
100 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Equivalence Code:
SOLCC6,.12
Physical Dimension:
5.0mm x 3.2mm x 1.2mm
Rise Time-Max:
0.5 ns
Supply Voltage-Max:
1.89 V
Supply Voltage-Min:
1.71 V
Supply Voltage-Nom:
1.8 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

AK5DCF1-100.0000T2 Frequently Asked Questions (FAQs)

The operating temperature range of the AK5DCF1-100.0000T2 is -40°C to +85°C.
Yes, the AK5DCF1-100.0000T2 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
The frequency stability of the AK5DCF1-100.0000T2 is ±50 ppm over the operating temperature range.
Yes, the AK5DCF1-100.0000T2 is designed to withstand high-vibration environments, with a vibration sensitivity of 0.5 g max.
The recommended storage temperature for the AK5DCF1-100.0000T2 is -40°C to +85°C.
