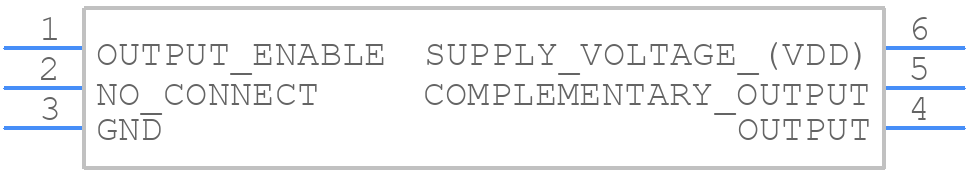

AK7DAF1-125.0000T2 - ABRACON

AK7DAF1-125.0000T2 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  Abracon recommends a symmetrical PCB layout with a solid ground plane, and the oscillator should be placed as close as possible to the microcontroller or IC. A minimum of 2-layer PCB is recommended, with the oscillator on the top layer and the ground plane on the bottom layer.
• How do I ensure the oscillator starts up correctly?
  To ensure proper startup, Abracon recommends applying power to the oscillator slowly (dv/dt < 10V/ms) and ensuring that the power supply is stable and noise-free. Additionally, the oscillator should be decoupled from the power supply with a 10nF to 100nF capacitor.
• What is the maximum operating temperature range for this oscillator?
  The AK7DAF1-125.0000T2 has an operating temperature range of -40°C to +85°C, but it's recommended to derate the frequency tolerance by ±0.05ppm/°C for temperatures above +70°C.
• Can I use this oscillator in a high-vibration environment?
  Yes, the AK7DAF1-125.0000T2 is designed to withstand vibrations up to 10g peak acceleration, but it's recommended to follow Abracon's guidelines for vibration testing and to ensure proper PCB mounting and soldering.
• How do I handle ESD protection for this oscillator?
  Abracon recommends following standard ESD handling procedures, such as using an ESD wrist strap or mat, and ensuring that the oscillator is stored in an ESD-protective package. Additionally, the oscillator should be handled by the package, not the pins, to prevent damage.
