AK7DBF1-100.0000T2 - ABRACON

Description: 100 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead.

Download AK7DBF1-100.0000T2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

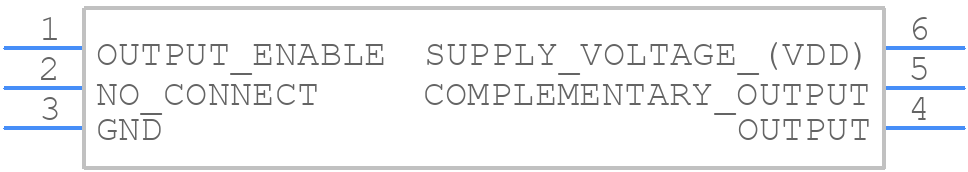

Symbol
AK7DBF1-100.0000T2 - ABRACON - PCB symbol
click to zoom
PCB Footprints
AK7DBF1-100.0000T2 - ABRACON PCB footprint - Other - Other - AK7DBF1-100.0000T2
click to zoom
3D Models
AK7DBF1-100.0000T2 - ABRACON - 3D model - Other - AK7DBF1-100.0000T2
click to zoom

AK7DBF1-100.0000T2 Details

  • Manufacturer Part Number:

    AK7DBF1-100.0000T2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR, 7 INCH

  • Fall Time-Max:

    0.4 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Physical Dimension:

    7.0mm x 5.0mm x 1.8mm

  • Rise Time-Max:

    0.4 ns

  • Supply Voltage-Max:

    2.62 V

  • Supply Voltage-Min:

    2.37 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AK7DBF1-100.0000T2 Frequently Asked Questions (FAQs)

  • Abracon recommends a symmetrical PCB layout with a solid ground plane, and the oscillator should be placed as close as possible to the microcontroller or ASIC. A minimum of 2-layer PCB is recommended, with the oscillator on the top layer and the ground plane on the bottom layer.
  • To ensure reliable startup, Abracon recommends a power-up ramp time of 1ms to 10ms, and a power supply voltage that is within the specified operating range. Additionally, the oscillator should be decoupled from the power supply with a 10nF to 100nF capacitor.
  • The AK7DBF1-100.0000T2 has an extended operating temperature range of -40°C to +125°C, making it suitable for industrial and automotive applications.
  • Yes, the oscillator is sensitive to EMI. Abracon recommends using EMI shielding, such as a metal can or a shielded enclosure, to minimize the effects of EMI. Additionally, the PCB layout should be designed to minimize radiation and susceptibility to EMI.
  • The AK7DBF1-100.0000T2 is designed to withstand vibrations up to 10g peak acceleration, making it suitable for industrial and automotive applications. However, it's recommended to consult with Abracon's application engineers for specific vibration requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AK7DBF1-100.0000T2 Overview

Use the download button to access the AK7DBF1-100.0000T2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AK7DB, or try a keyword search, such as XO
