AK7DBF1-122.8800T2 footprint, schematic symbol and 3D model by ABRACON

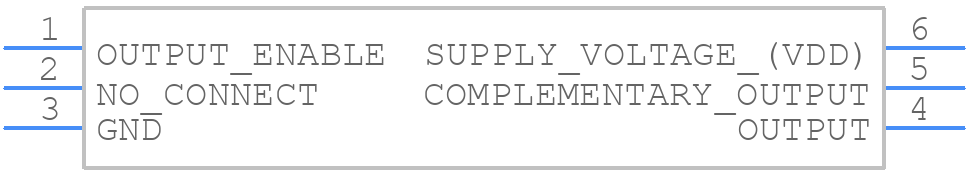

Symbol

PCB Footprints

3D Models

AK7DBF1-122.8800T2 Details

The recommended operating temperature range for the AK7DBF1-122.8800T2 is -40°C to +85°C.
To ensure the oscillator starts up correctly, make sure to follow the recommended power-up sequence, provide a stable power supply, and meet the recommended load capacitance and impedance requirements.
The typical start-up time for the AK7DBF1-122.8800T2 is around 2-5 ms, but this can vary depending on the specific application and operating conditions.
Yes, the AK7DBF1-122.8800T2 is designed to operate in high-vibration environments, but it's essential to follow proper mounting and soldering techniques to ensure reliable operation.
To prevent electrostatic discharge (ESD) damage, handle the AK7DBF1-122.8800T2 with an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded.
