AK7DBF1-156.2500T2 - ABRACON

Description: 156.25 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead

Download AK7DBF1-156.2500T2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

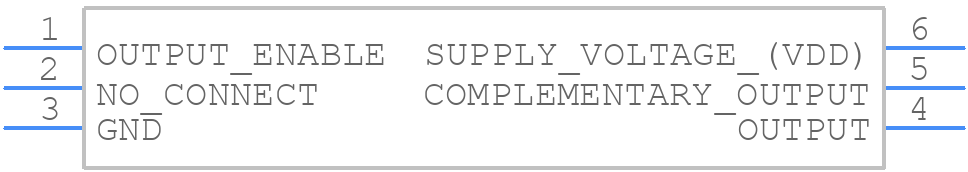

AK7DBF1-156.2500T2 - ABRACON - PCB symbol
click to zoom
PCB Footprints
AK7DBF1-156.2500T2 - ABRACON PCB footprint - Other - Other - AK7DBF1-156.2500T2
click to zoom
3D Models
AK7DBF1-156.2500T2 - ABRACON - 3D model - Other - AK7DBF1-156.2500T2
click to zoom

AK7DBF1-156.2500T2 Details

  • Manufacturer Part Number:

    AK7DBF1-156.2500T2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR, 7 INCH

  • Fall Time-Max:

    0.4 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    156.25 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Physical Dimension:

    7.0mm x 5.0mm x 1.8mm

  • Rise Time-Max:

    0.4 ns

  • Supply Voltage-Max:

    2.62 V

  • Supply Voltage-Min:

    2.37 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AK7DBF1-156.2500T2 Frequently Asked Questions (FAQs)

  • The operating temperature range of the AK7DBF1-156.2500T2 is -40°C to +85°C.
  • Yes, the AK7DBF1-156.2500T2 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical power consumption of the AK7DBF1-156.2500T2 is around 10-20mA, depending on the specific application and operating conditions.
  • Yes, the AK7DBF1-156.2500T2 is designed to operate in high-vibration environments, with a vibration sensitivity of 10g peak acceleration.
  • Abracon Corporation provides a recommended PCB layout and land pattern in their application notes and datasheet, which should be followed to ensure optimal performance and reliability.
