AK7DBF1-200.0000T2 - ABRACON

Description: Standard Clock Oscillators 175fs Ultra low jitter 5x7mm 2.5V LVDS XO

Download AK7DBF1-200.0000T2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

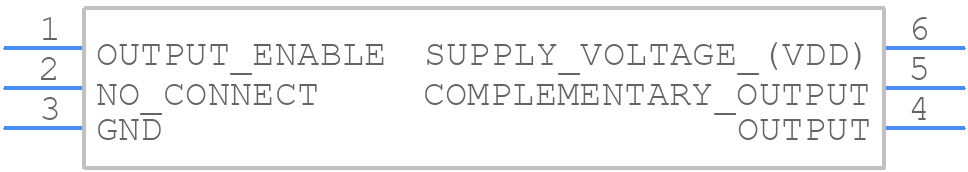

AK7DBF1-200.0000T2 - ABRACON - PCB symbol
click to zoom
PCB Footprints
AK7DBF1-200.0000T2 - ABRACON PCB footprint - Other - Other - AK7DBF1-200.0000T2
click to zoom
3D Models
AK7DBF1-200.0000T2 - ABRACON - 3D model - Other - AK7DBF1-200.0000T2
click to zoom

AK7DBF1-200.0000T2 Details

  • Manufacturer Part Number:

    AK7DBF1-200.0000T2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR, 7 INCH

  • Fall Time-Max:

    0.4 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Physical Dimension:

    7.0mm x 5.0mm x 1.8mm

  • Rise Time-Max:

    0.4 ns

  • Supply Voltage-Max:

    2.62 V

  • Supply Voltage-Min:

    2.37 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %
