AL1791AFE-13 - Diodes Incorporated

Description: LED Lighting Drivers Sgl-Ch 6.5 to 30V 1A LED Driver AC/DC PWM

Download AL1791AFE-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

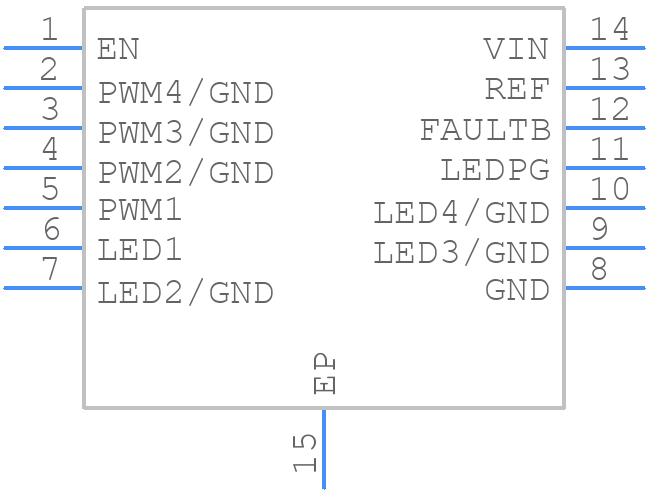

AL1791AFE-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AL1791AFE-13 - Diodes Incorporated PCB footprint - Small Outline No-lead - Small Outline No-lead - AL1791AFE-13-
click to zoom
3D Models
AL1791AFE-13 - Diodes Incorporated - 3D model - Small Outline No-lead - AL1791AFE-13-
click to zoom

AL1791AFE-13 Details

  • Manufacturer Part Number:

    AL1791AFE-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-14

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-N14

  • Length:

    4 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AL1791AFE-13 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC to improve heat dissipation. A 2-layer or 4-layer PCB with a solid ground plane is also recommended to reduce thermal resistance.
  • Ensure that the input voltage is within the recommended range, and that the output capacitor is of sufficient value and type (e.g. X5R or X7R ceramic) to maintain stability.
  • The maximum ambient temperature for reliable operation is 85°C, but derating is recommended for temperatures above 70°C to ensure long-term reliability.
  • Yes, but ensure that the input voltage is sufficient to support the required output current, and that the thermal design is adequate to dissipate the heat generated.
  • Use a TVS diode or a transient voltage suppressor (TVS) in parallel with the input capacitor to protect the regulator from input voltage transients.
