A good PCB layout for the AL1792AFE-13 should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC to facilitate heat dissipation. A minimum of 2oz copper thickness is recommended.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power sequencing and timing diagrams provided in the datasheet. Additionally, a soft-start circuit can be implemented to reduce inrush currents and prevent voltage drops.
When selecting external components, consider the voltage rating, capacitance, and ESR of the input and output capacitors. Choose components with low ESR and high ripple current ratings to ensure stable operation and minimize losses.
To troubleshoot these issues, monitor the output voltage, input voltage, and current sense pins. Use an oscilloscope to observe the waveforms and identify any anomalies. Check the PCB layout, component selection, and soldering quality to ensure they meet the recommended specifications.
To manage thermal performance, ensure good airflow around the IC, use a heat sink if necessary, and implement a thermal monitoring and shutdown mechanism to prevent overheating. The junction temperature (Tj) should be kept below 125°C for reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL1792AFE-13 Overview

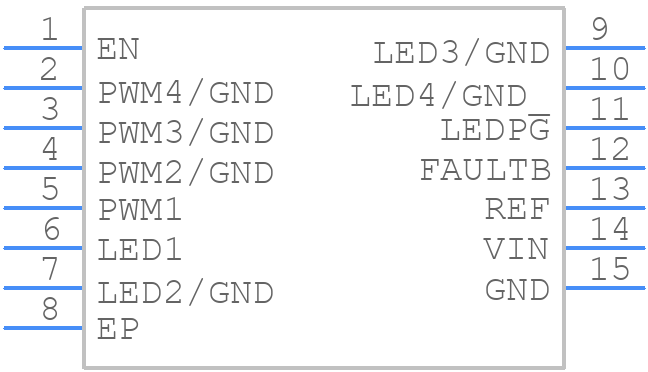

Use the download button to access the AL1792AFE-13 schematic symbol, PCB footprint, and 3D model.
