AL1794AFE-13 - Diodes Incorporated

Description: LED Driver IC 4 Output Linear Analog, PWM Dimming 1.5A U-DFN4030-14

Download AL1794AFE-13 Model

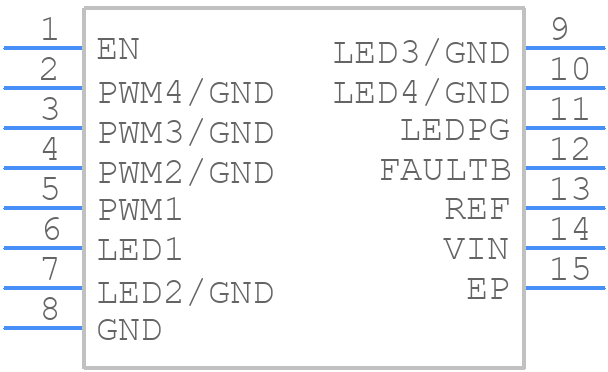

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AL1794AFE-13 - Diodes Incorporated PCB footprint - Other - Other - AL1794AFE-13
click to zoom
3D Models
AL1794AFE-13 - Diodes Incorporated  - 3D model - Other - AL1794AFE-13
click to zoom

AL1794AFE-13 Details

  • Manufacturer Part Number:

    AL1794AFE-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-14

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-N14

  • Length:

    4 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    9

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AL1794AFE-13 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AL1794AFE-13 involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to keep the output capacitor close to the output pin of the device. Additionally, the output voltage can be further stabilized by adding a 1uF ceramic capacitor in parallel with the output capacitor.
  • The maximum ambient temperature range for the AL1794AFE-13 is -40°C to +125°C. However, the device can operate up to 150°C with derating. It is recommended to follow the thermal derating curve provided in the datasheet to ensure reliable operation.
  • Yes, the AL1794AFE-13 is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is recommended to follow the recommended operating conditions and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the AL1794AFE-13, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the recommended operating conditions. Check for any signs of overheating, and ensure that the PCB layout is correct. If the issue persists, consult the datasheet and application notes, or contact Diodes Incorporated's technical support team for further assistance.
