Description:• Wide Input Voltage Range: 9V to 40V
• High Precision Feedback Reference Voltage: 400mV/±1.5%
• Current Mode PWM Controller with Good Dynamic Response
• PWM to Analog Dimming Mode
• Built-In Comprehensive Protections
Undervoltage Lockout (UVLO)
Output Overvoltage Protection (OVP)
Power MOSFET Overcurrent Protection (OCP)
Diode and Inductor Short Protection
LED Cathode Short to GND Protection
LED Open Protection
VOUT Short Protection
Overtemperature Protection (OTP)
• Available
A good PCB layout for the AL3353S-13 should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the IC to facilitate heat dissipation. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation across the full temperature range, it's essential to follow proper PCB design and layout guidelines, use a suitable thermal interface material, and ensure adequate airflow or heat sinking. Additionally, consider using a thermistor or thermocouple to monitor the device temperature.
Exceeding the maximum junction temperature (Tj) can lead to reduced lifespan, decreased performance, and potentially even device failure. It's crucial to ensure the device operates within the recommended temperature range to maintain reliability and performance.
While the AL3353S-13 is a high-quality device, it may not meet the specific requirements for high-reliability or automotive applications. It's essential to consult with Diodes Incorporated or a qualified representative to determine the device's suitability for such applications.
The AL3353S-13 has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. Additionally, the device is designed to prevent latch-up, but it's crucial to ensure proper power sequencing and decoupling to prevent latch-up conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL3353S-13 Overview

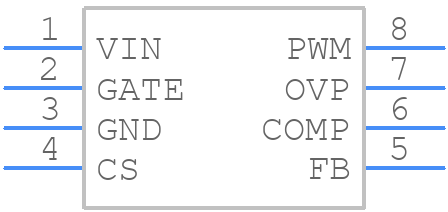

Use the download button to access the AL3353S-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL335,
or try a keyword search, such as Display Drivers
