AL422B - AverLogic

AL422B Details

• Manufacturer Part Number:

  AL422B

• Part Life Cycle Code:

  Contact Manufacturer

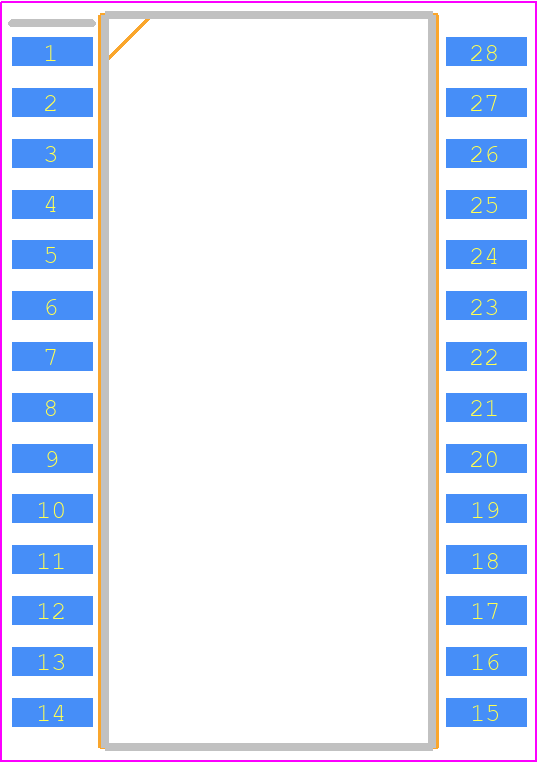

• Package Description:

  0.330 INCH, PLASTIC, MO-059, SOP-28

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.71

• Manufacturer:

  Averlogic Technologies

• Access Time-Max:

  15 ns

• Additional Feature:

  ALSO OPERATES AT 4.5 TO 5.25 V SUPPLY

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e0

• Length:

  18.11 mm

• Memory Density:

  3145728 bit

• Memory IC Type:

  MEMORY CIRCUIT

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  28

• Number of Words:

  393216 words

• Number of Words Code:

  384000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  384KX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.85 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  8.41 mm
