AL5817MP-13 - Diodes Incorporated

Description: LED Driver IC 1 Output Linear PWM Dimming 15mA 8-MSOP-EP

Download AL5817MP-13 Model

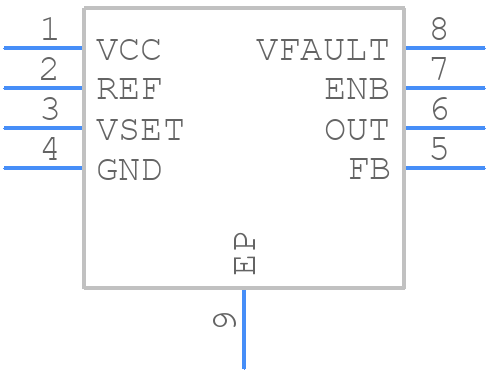

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AL5817MP-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-8EP-2021
click to zoom
3D Models
AL5817MP-13 - Diodes Incorporated  - 3D model - Small Outline Packages - MSOP-8EP-2021
click to zoom

AL5817MP-13 Details

  • Manufacturer Part Number:

    AL5817MP-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AL5817MP-13 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using thermal vias to dissipate heat to the other layers. A minimum of 2oz copper thickness is recommended.
  • To ensure the device is properly biased, make sure to follow the recommended operating conditions in the datasheet, including the input voltage range, output voltage range, and output current. Additionally, ensure that the input and output capacitors are properly selected and placed close to the device.
  • The maximum junction temperature that the AL5817MP-13 can withstand is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • Yes, the AL5817MP-13 is qualified to AEC-Q100 Grade 1, making it suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device meets the required reliability and performance standards.
  • To troubleshoot issues with the device, start by verifying the input voltage, output voltage, and output current are within the recommended operating conditions. Check the PCB layout for thermal issues, and ensure that the input and output capacitors are properly selected and placed. If the issue persists, consult the datasheet and application notes for guidance, or contact Diodes Incorporated's technical support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AL5817MP-13 Overview

Use the download button to access the AL5817MP-13 schematic symbol, PCB footprint, and 3D model.
