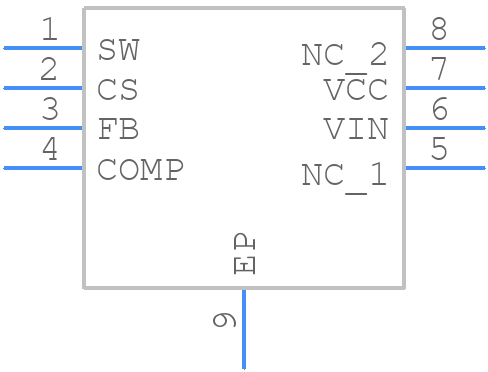

AL8822SP-13 - Diodes Incorporated

AL8822SP-13 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Diodes Incorporated recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the PCB. Additionally, keeping the component away from other heat sources and using a heat sink can further improve thermal performance.
• How do I ensure the device is properly biased for optimal performance?
  To ensure proper biasing, follow the recommended operating conditions in the datasheet. The device requires a minimum input voltage of 6.5V and a maximum input voltage of 26V. The output voltage should be set between 0.8V and 5.5V. Additionally, ensure that the input and output capacitors are properly selected and placed close to the device.
• What is the maximum output current capability of the AL8822SP-13?
  The AL8822SP-13 is capable of delivering up to 2A of output current. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal performance of the device. It is recommended to consult the datasheet and perform thermal calculations to determine the maximum output current capability for a specific application.
• How do I protect the device from overvoltage and undervoltage conditions?
  The AL8822SP-13 has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional protection measures can be taken by adding external components such as TVS diodes or voltage supervisors to protect the device from voltage transients and faults.
• What is the recommended EMI filtering scheme for the AL8822SP-13?
  A simple EMI filtering scheme can be implemented using a ferrite bead in series with the input capacitor and a ceramic capacitor in parallel with the output capacitor. Additionally, using a shielded inductor and placing the device away from noise sources can further reduce EMI emissions.
