AL8823S-13 - Diodes Incorporated

Description: LED Lighting Drivers MR16 Single Stage Boost LED Driver

Download AL8823S-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

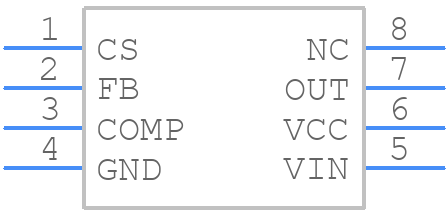

AL8823S-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AL8823S-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
AL8823S-13 - Diodes Incorporated - 3D model - Small Outline Packages - SO-8
click to zoom

AL8823S-13 Details

  • Manufacturer Part Number:

    AL8823S-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AL8823S-13 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AL8823S-13 involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is also recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, with an ESR of less than 1 ohm. Additionally, the output voltage should be decoupled from the input voltage using a 1uF ceramic capacitor.
  • The AL8823S-13 can handle a maximum input voltage of 18V, but it is recommended to operate the device within the specified input voltage range of 6.5V to 16V for optimal performance and reliability.
  • The power dissipation of the AL8823S-13 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The maximum power dissipation of the device is 1.5W.
  • Yes, the AL8823S-13 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
