A good PCB layout for the AL8853S-13 should include a large copper area for heat dissipation, with multiple vias connecting the top and bottom layers to reduce thermal resistance. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation at high temperatures, ensure the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Also, consider using a heat sink or thermal interface material to reduce the thermal resistance between the device and the ambient environment.
The AL8853S-13 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the device is stored in an anti-static bag or tube when not in use.
Yes, the AL8853S-13 is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade semiconductor devices. However, ensure you follow the recommended operating conditions and design guidelines to ensure reliable operation.
The recommended soldering conditions for the AL8853S-13 are: peak temperature of 260°C, soldering time of 10 seconds, and a temperature ramp rate of 3°C/second. Ensure the device is not exposed to temperatures above 260°C for more than 10 seconds.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL8853S-13 Overview

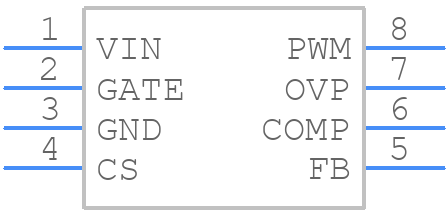

Use the download button to access the AL8853S-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL885,
or try a keyword search, such as Display Drivers
