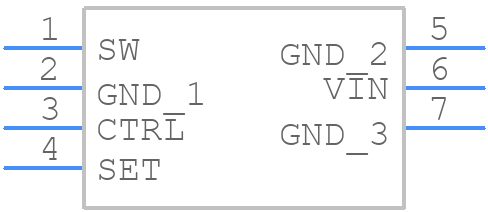

AL8862FF-7 - Diodes Incorporated

AL8862FF-7 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. Multiple vias can be used to connect the thermal pad to the copper area. The copper area should be as large as possible and connected to a ground plane to maximize heat dissipation.
• How do I ensure stable output voltage regulation?
  To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1 ohm or less. Additionally, the output capacitor should be placed as close to the output pin as possible to minimize parasitic inductance.
• What is the maximum input voltage that can be applied to the device?
  Although the datasheet specifies a maximum input voltage of 26V, it is recommended to limit the input voltage to 24V to ensure reliable operation and to prevent damage to the device.
• How do I protect the device from overcurrent conditions?
  The AL8862FF-7 has a built-in overcurrent protection (OCP) feature that limits the output current to 3.5A. However, it is still recommended to add external overcurrent protection, such as a fuse or a current-sensing resistor, to prevent damage to the device and the PCB.
• What is the recommended input capacitor value and type?
  A 10uF to 22uF ceramic or electrolytic capacitor with a voltage rating of 30V or higher is recommended for input decoupling. The capacitor should be placed as close to the input pin as possible to minimize parasitic inductance.
