AL8862SP-13 - Diodes Incorporated

Description: LED Lighting Drivers LED MV Int Switch

Download AL8862SP-13 Model

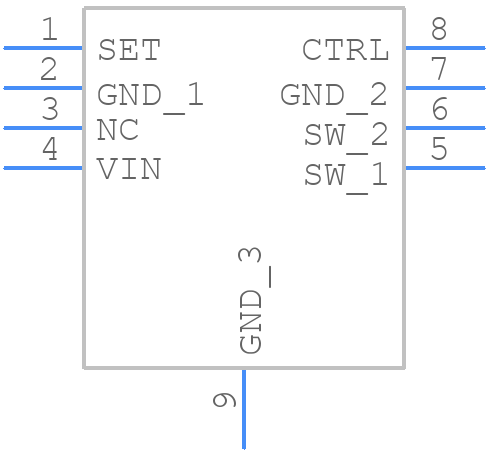

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AL8862SP-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - AL8862SP-13
click to zoom
3D Models
AL8862SP-13 - Diodes Incorporated  - 3D model - Small Outline Packages - AL8862SP-13
click to zoom

AL8862SP-13 Details

  • Manufacturer Part Number:

    AL8862SP-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    16 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AL8862SP-13 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AL8862SP-13 should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern under the IC to facilitate heat dissipation. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input voltage is within the recommended range, and the output capacitor is of high quality and has a low ESR.
  • The AL8862SP-13 is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 70°C to ensure a sufficient margin for thermal derating.
  • While it's possible to use a different inductor value or type, it's not recommended. The recommended inductor value and type are carefully selected to ensure optimal performance and stability. Using a different inductor may affect the regulator's performance, stability, and efficiency.
  • To troubleshoot output voltage deviations or oscillations, check the PCB layout, component values, and input voltage. Ensure that the input voltage is within the recommended range, and the output capacitor is of high quality and has a low ESR. Also, verify that the inductor value and type match the recommended specifications.
