AL9901S16-13 - Diodes Incorporated

Description: >90% Efficiency • Universal Rectified 85 to 305VAC Input Range • Internal MOSFET Up to 650V, 2A • High Switching Frequency Up to 300kHz • Internal Voltage Regulator Removes Start-Up Resistor • 7.5V Regulated Output • Tighter Current Sense Tolerance Better Than 5% • LED Brightness Control with Linear and PWM Dimming • Internal Over-Temperature Protection (OTP) • U-DFN6040-12 and SO-16 Packages • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Not

Download AL9901S16-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

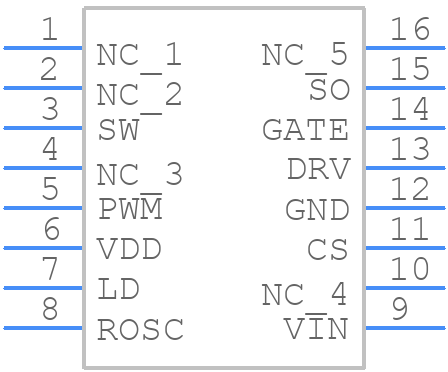

AL9901S16-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AL9901S16-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-16.
click to zoom
3D Models
AL9901S16-13 - Diodes Incorporated - 3D model - Small Outline Packages - SO-16.
click to zoom

AL9901S16-13 Details

  • Manufacturer Part Number:

    AL9901S16-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    500 V

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AL9901S16-13 Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Also, ensure proper thermal design and heat sinking to prevent overheating.
  • The maximum allowed voltage on the input pins is 6V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • While the AL9901S16-13 is not specifically designed for high-humidity environments, it can still be used with proper precautions. Ensure the device is properly sealed and conformal coated to prevent moisture ingress.
  • The typical rise and fall time of the output signal is around 10ns to 20ns, depending on the load capacitance and operating conditions.
