The recommended power-on sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD). This ensures that the analog circuitry is stable before the digital circuitry is powered up.
To configure the ALC262-VC2-GR for stereo audio output, set the STEREO bit in the ACMD1 register to 1. This will enable stereo audio output on the LOUT and ROUT pins.
The maximum input voltage for the ALC262-VC2-GR's ADC is 2.5V. Exceeding this voltage may cause damage to the device.
To reduce EMI emissions from the ALC262-VC2-GR, use a ground plane, keep analog and digital traces separate, and use shielding or filtering on the output signals.
The recommended clock frequency for the ALC262-VC2-GR is 12.288 MHz, which is the standard clock frequency for audio codecs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALC262-VC2-GR Overview

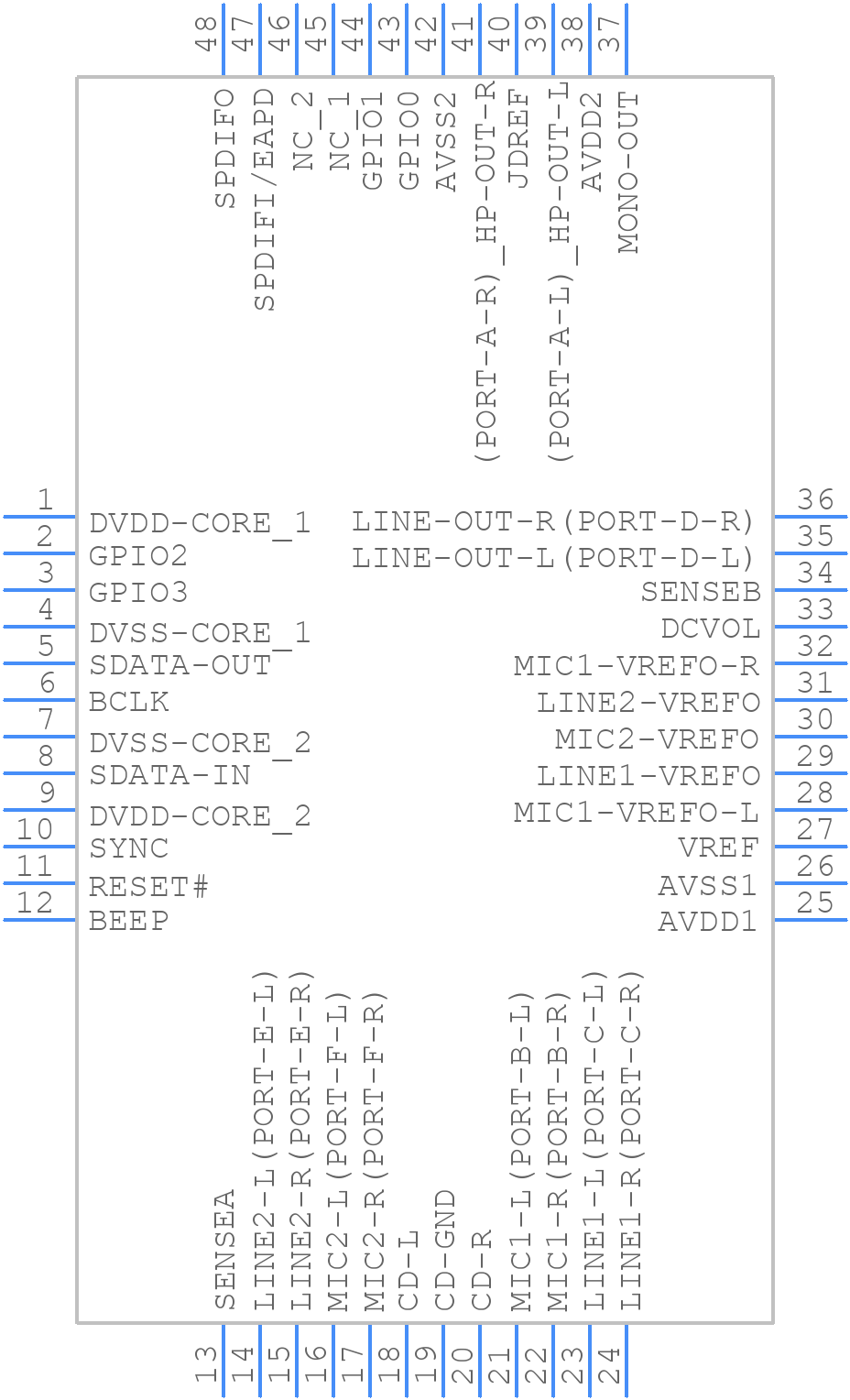

Use the download button to access the ALC262-VC2-GR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALC26,
or try a keyword search, such as Other Consumer ICs
