Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ALC662-GR
- Part Number ALC662-GR
- Manufacturer Realtek
- Pin Count 48
- Part Category LED (Multiple)
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - LQFP-48
- Pinout / Pin List Click Here (Member Only)
Trust Checks
System Verified
ALC662-GR Overview

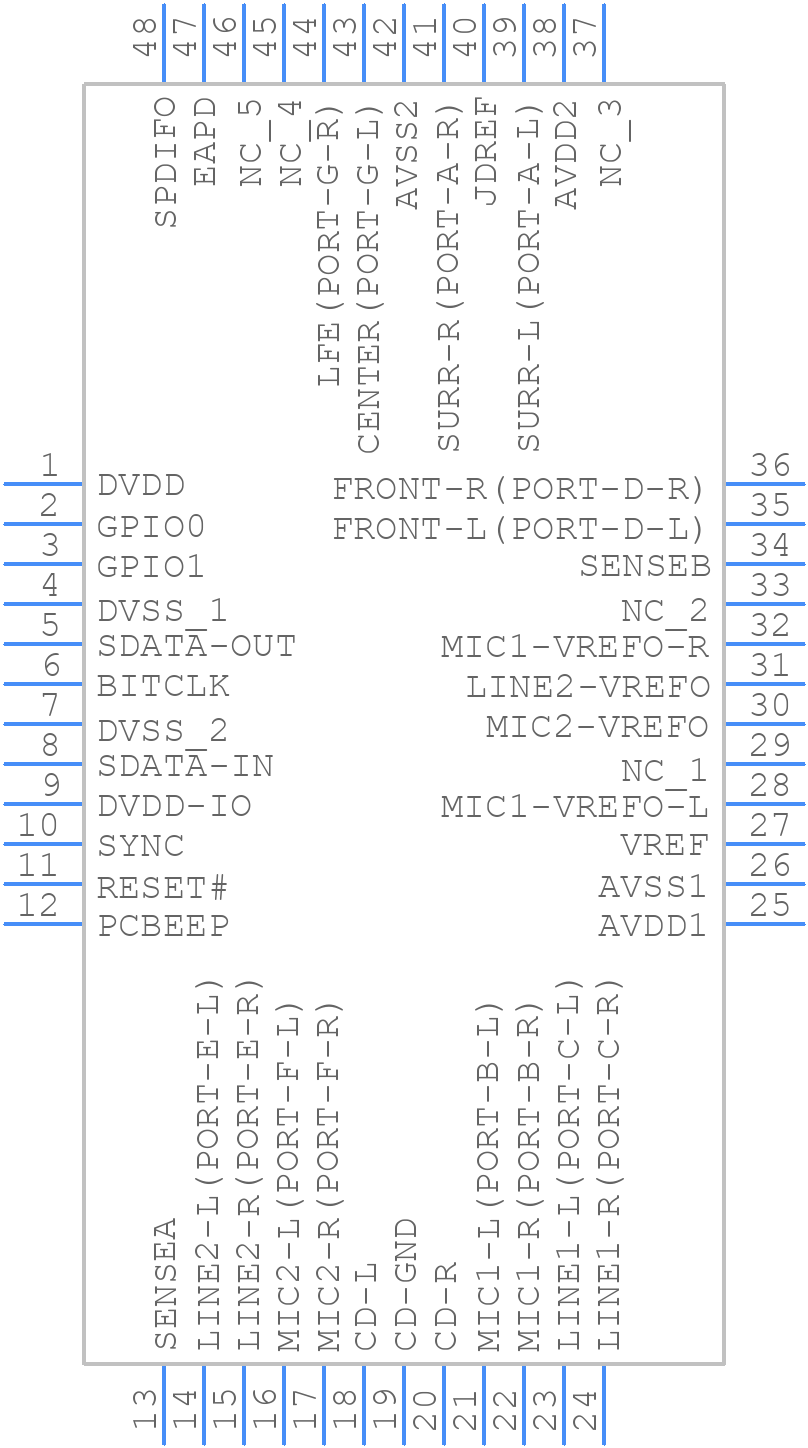

Use the download button to access the ALC662-GR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ALC66,
or try a keyword search, such as Other Consumer ICs
