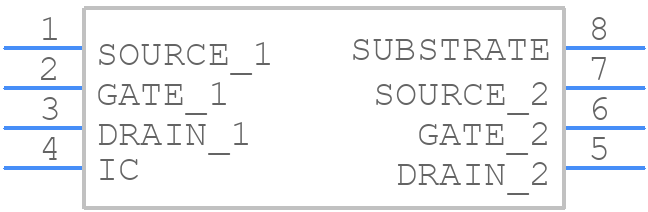

ALD1101SA - Advanced Linear Devices Inc.

ALD1101SA Details

• Manufacturer Part Number:

  ALD1101SA

• Pbfree Code:

  No

• Part Life Cycle Code:

  Contact Manufacturer

• Part Package Code:

  SOT

• Package Description:

  SOIC-8

• Pin Count:

  8

• ECCN Code:

  EAR99

• Manufacturer:

  Advanced Linear Devices Inc

• Additional Feature:

  LOW THRESHOLD, HIGH INPUT IMPEDANCE

• Configuration:

  COMMON SUBSTRATE, 2 ELEMENTS

• DS Breakdown Voltage-Min:

  12 V

• Drain-source On Resistance-Max:

  75 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e0

• Number of Elements:

  2

• Number of Terminals:

  8

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  0.5 W

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
