ALD1102PAL - Advanced Linear Devices Inc.

Description: MOSFET Dual P-Channel Pair

Download ALD1102PAL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

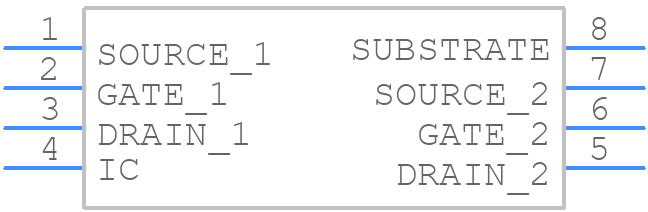

ALD1102PAL - Advanced Linear Devices Inc. - PCB symbol
click to zoom
PCB Footprints
ALD1102PAL - Advanced Linear Devices Inc. PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ALD1102PAL-1
click to zoom
3D Models
ALD1102PAL - Advanced Linear Devices Inc. - 3D model - Dual-In-Line Packages - ALD1102PAL-1
click to zoom

ALD1102PAL Details

  • Manufacturer Part Number:

    ALD1102PAL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Advanced Linear Devices Inc

  • Configuration:

    COMMON SUBSTRATE, 2 ELEMENTS

  • DS Breakdown Voltage-Min:

    10 V

  • Drain-source On Resistance-Max:

    270 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDIP-T8

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    0.5 W

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

ALD1102PAL Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for ALD1102PAL is 2.7V to 5.5V, although it can operate down to 2.2V with reduced performance.
  • To ensure stable and accurate output voltage, it's essential to decouple the input and output pins with capacitors (e.g., 10uF and 1uF, respectively) and provide a stable reference voltage (VREF) within the specified range.
  • The maximum output current of ALD1102PAL is 20mA per channel, although it's recommended to limit the output current to 10mA per channel for optimal performance and reliability.
  • The gain of ALD1102PAL can be configured by connecting the gain-setting resistors (R1 and R2) between the output and input pins. The gain is calculated as (R2/R1) + 1, with a maximum gain of 10.
  • ALD1102PAL is designed for low-frequency applications (up to 100kHz). For high-frequency applications, it's recommended to use a different op-amp with a higher bandwidth and slew rate.
