A good PCB layout for the ALD1107PBL involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
The maximum allowed voltage on the input pins of the ALD1107PBL is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 2.7V to 5.5V to ensure optimal performance and reliability.
Yes, the ALD1107PBL can be used in battery-powered devices. It has a low quiescent current of 0.1mA, making it suitable for battery-powered applications. However, it's essential to consider the device's power consumption and the battery life requirements of the application.
To troubleshoot issues with the ALD1107PBL, start by checking the power supply voltage, input signals, and output loads. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Use an oscilloscope to check the input and output waveforms, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALD1107PBL Overview

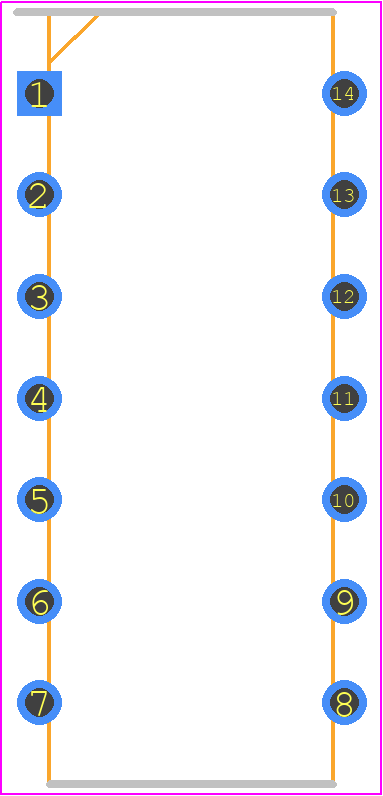

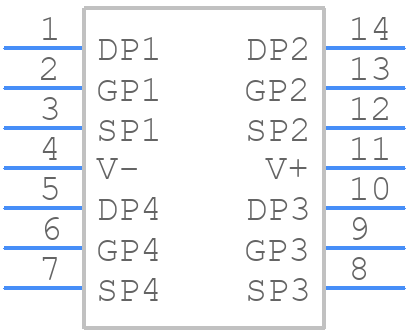

Use the download button to access the ALD1107PBL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALD11,
or try a keyword search, such as Small Signal Field-Effect Transistors
