ALD1107SBL - Advanced Linear Devices Inc.

Description: MOSFET 4P-CH 10.6V 14SOIC

Download ALD1107SBL Model

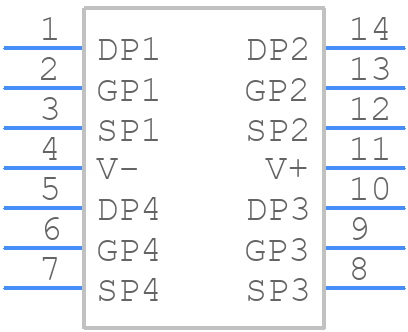

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ALD1107SBL - Advanced Linear Devices Inc. PCB footprint - Small Outline Packages - Small Outline Packages - ALD1106SB
click to zoom
3D Models
ALD1107SBL - Advanced Linear Devices Inc.  - 3D model - Small Outline Packages - ALD1106SB
click to zoom

ALD1107SBL Details

  • Manufacturer Part Number:

    ALD1107SBL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SBL, SOIC-14

  • ECCN Code:

    EAR99

  • Manufacturer:

    Advanced Linear Devices Inc

  • Configuration:

    COMMON SUBSTRATE, 4 ELEMENTS

  • DS Breakdown Voltage-Min:

    10.6 V

  • Drain-source On Resistance-Max:

    1800 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G14

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    14

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

ALD1107SBL Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for ALD1107SBL is 2.7V to 5.5V, although it can operate down to 2.2V with reduced performance.
  • To ensure stable and accurate output voltage, it's essential to decouple the input and output pins with capacitors (e.g., 1uF and 10uF) and use a low-ESR capacitor (e.g., 10uF) at the output pin.
  • The maximum output current of ALD1107SBL is 150mA, but it's recommended to limit the output current to 100mA for optimal performance and reliability.
  • ALD1107SBL has a built-in noise filter and ripple rejection circuitry, which helps to minimize the impact of input voltage noise and ripple on the output voltage. However, it's still recommended to use a low-noise power supply and add external filtering if necessary.
  • ALD1107SBL is rated for operation up to 125°C, but its performance and accuracy may degrade at higher temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliability.
