ALD810025SCL - Advanced Linear Devices Inc.

Description: QUAD/DUAL SUPERCAPACITOR AUTO BALANCING (SAB™) MOSFET ARRAY MOSFET Quad MOSFET ARRAY Vt=2.50V

Download ALD810025SCL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

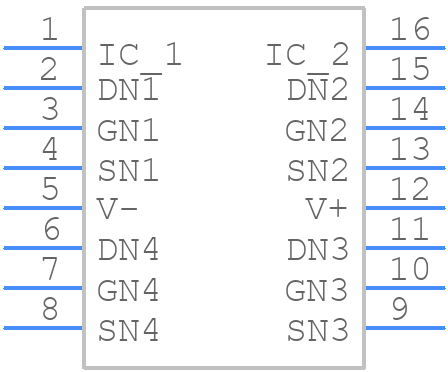

Symbol
ALD810025SCL - Advanced Linear Devices Inc. - PCB symbol
click to zoom
PCB Footprints
ALD810025SCL - Advanced Linear Devices Inc. PCB footprint - Small Outline Packages - Small Outline Packages - 16 Pin Plastic SOIC Package
click to zoom
3D Models
ALD810025SCL - Advanced Linear Devices Inc. - 3D model - Small Outline Packages - 16 Pin Plastic SOIC Package
click to zoom

ALD810025SCL Details

  • Manufacturer Part Number:

    ALD810025SCL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • Manufacturer:

    Advanced Linear Devices Inc

  • Configuration:

    SEPARATE, 4 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    10.6 V

  • Drain Current-Max (ID):

    0.08 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G16

  • Number of Elements:

    4

  • Number of Terminals:

    16

  • Operating Mode:

    DEPLETION MODE

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.5 W

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

ALD810025SCL Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the ALD810025SCL is 2.7V to 5.5V.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal management system to keep the device within its recommended operating temperature range.
  • The maximum current rating for the ALD810025SCL is 25mA per channel.
  • The ALD810025SCL can be interfaced with a microcontroller using a standard SPI or I2C interface. The specific interface protocol will depend on the microcontroller and the application requirements.
  • The internal voltage regulator in the ALD810025SCL is used to regulate the internal voltage supply to the device, ensuring that the device operates within its recommended voltage range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ALD810025SCL Overview

Use the download button to access the ALD810025SCL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALD81, or try a keyword search, such as Small Signal Field-Effect Transistors
