ALD810025SCLI - Advanced Linear Devices Inc.

Description: MOSFET Quad SAB MOSFET ARRAY VT=2.50V

Download ALD810025SCLI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

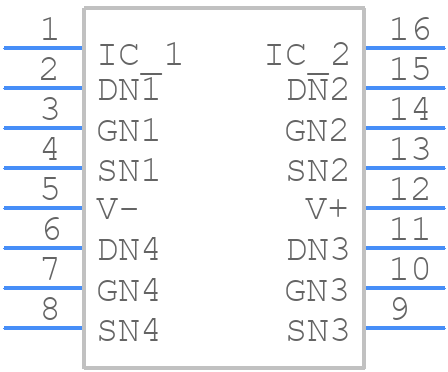

ALD810025SCLI - Advanced Linear Devices Inc. - PCB symbol
click to zoom
PCB Footprints
ALD810025SCLI - Advanced Linear Devices Inc. PCB footprint - Small Outline Packages - Small Outline Packages - ALD810025SCLI
click to zoom
3D Models
ALD810025SCLI - Advanced Linear Devices Inc. - 3D model - Small Outline Packages - ALD810025SCLI
click to zoom

ALD810025SCLI Details

  • Manufacturer Part Number:

    ALD810025SCLI

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • Manufacturer:

    Advanced Linear Devices Inc

  • Configuration:

    SEPARATE, 4 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    10.6 V

  • Drain Current-Max (ID):

    0.08 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G16

  • Number of Elements:

    4

  • Number of Terminals:

    16

  • Operating Mode:

    DEPLETION MODE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.5 W

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON
