ALFG1PF18 - Panasonic

Description: Load for solar inverter, Compact size, 1 Form A 22 A/33 A, Power relays

Download ALFG1PF18 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ALFG1PF18 - Panasonic - PCB symbol
click to zoom

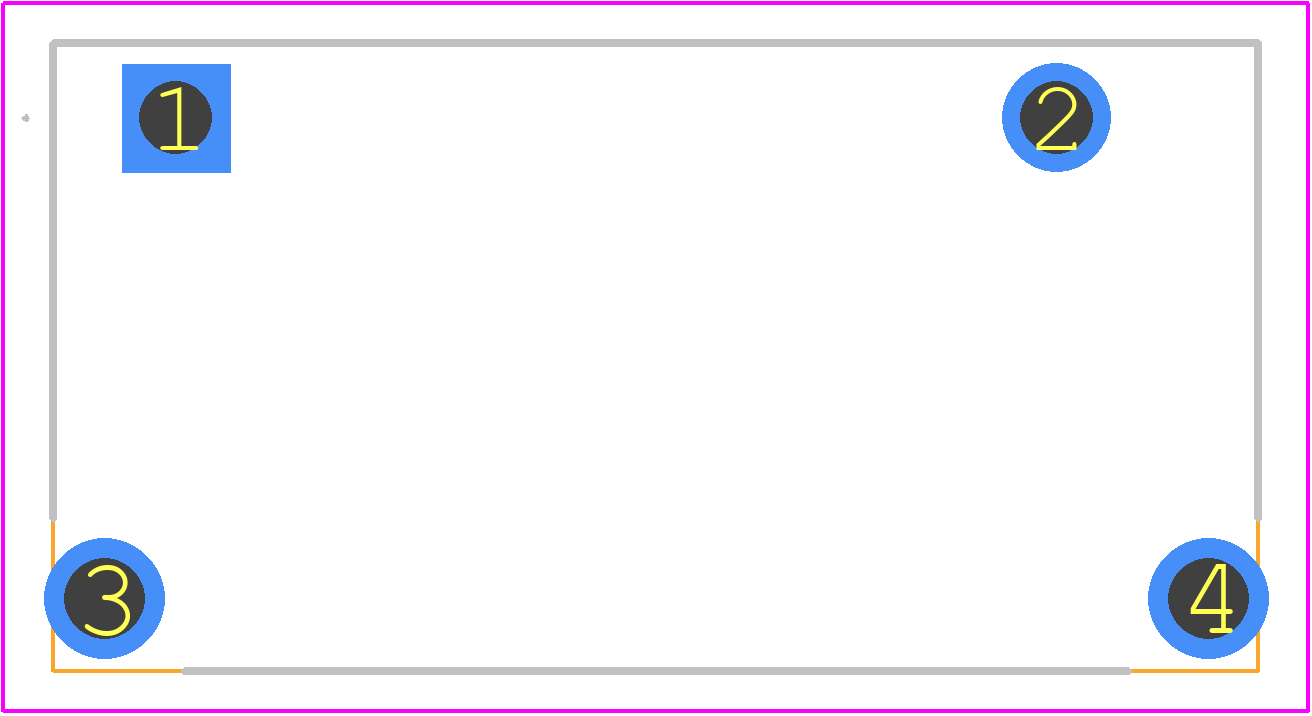

PCB Footprints
ALFG1PF18 - Panasonic PCB footprint - Other - Other - ALFG1
click to zoom
3D Models
ALFG1PF18 - Panasonic - 3D model - Other - ALFG1
click to zoom

ALFG1PF18 Details

  • Manufacturer Part Number:

    ALFG1PF18

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.6

  • Body Breadth:

    15.7 mm

  • Body Height:

    23.3 mm

  • Body Length or Diameter:

    30.1 mm

  • Coil Current(DC)-Max:

    0.078 A

  • Coil Operate Voltage(DC):

    12.6 V

  • Coil Power:

    1400 mW

  • Coil Release Voltage(DC):

    1.8 V

  • Coil Resistance:

    203 Ω

  • Coil Voltage(DC)-Max:

    18 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    22A@250VAC

  • Contact Current(AC)-Max:

    22 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    30000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    30.1mm x 15.7mm x 23.3mm

  • Reference Standard:

    UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
