Panasonic recommends a 4-layer PCB with a solid ground plane and a separate power plane for the ALFG2PF181. The component should be placed near the power source, and the input and output traces should be kept short and separate to minimize noise and EMI.
To ensure reliable operation over the full temperature range (-40°C to 105°C), it's essential to follow proper thermal design and management practices. This includes providing adequate heat dissipation, using thermal interface materials, and avoiding thermal hotspots.
Panasonic recommends soldering the ALFG2PF181 using a reflow soldering process with a peak temperature of 260°C and a dwell time of 30 seconds. The soldering iron temperature should not exceed 350°C, and the component should not be subjected to excessive mechanical stress during soldering.
To minimize high-frequency noise and EMI, it's essential to use proper shielding, grounding, and filtering techniques. This includes using a metal shield around the component, connecting the shield to the ground plane, and using EMI filters or ferrite beads on the input and output lines.
The high-power density of the ALFG2PF181 requires careful PCB design to ensure reliable operation. This includes using a thick copper PCB, providing adequate heat dissipation, and avoiding thermal hotspots. The component should be placed in a well-ventilated area, and the PCB should be designed to minimize thermal resistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALFG2PF181 Overview

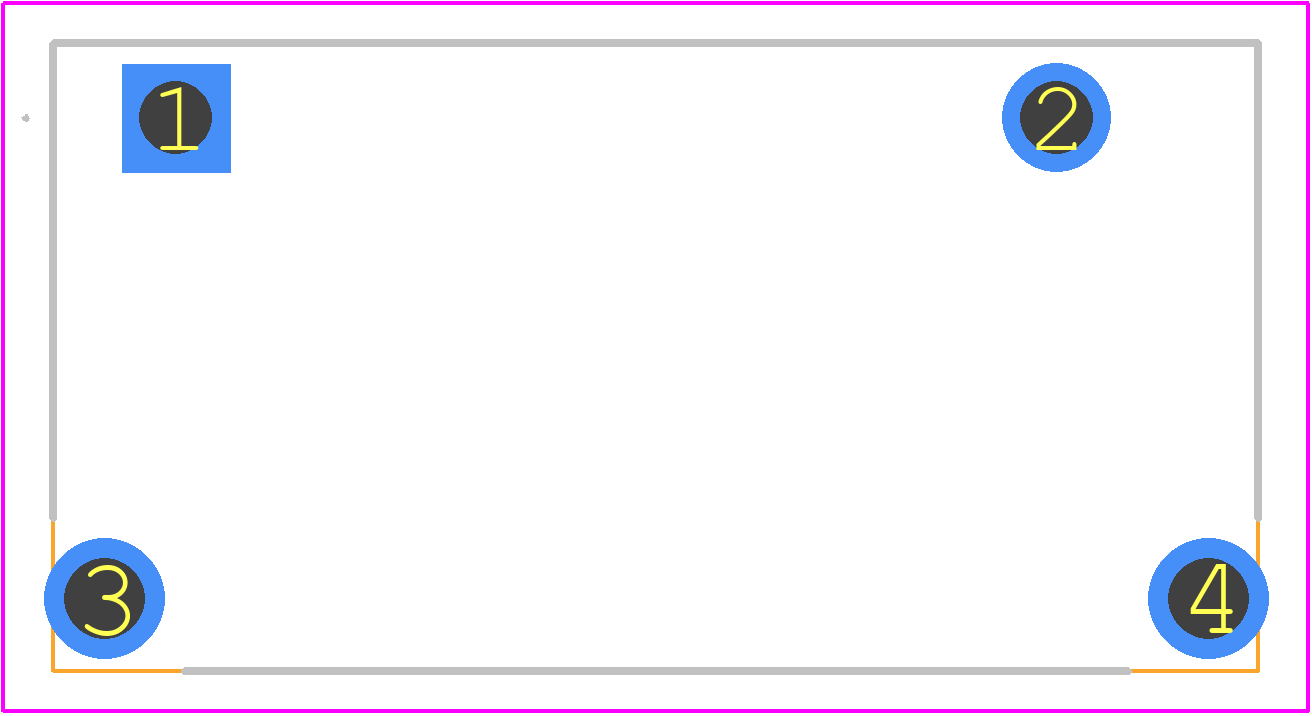

Use the download button to access the ALFG2PF181 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALFG2,
or try a keyword search, such as Power/Signal Relays
