ALT80600KESJSR - Allegro Microsystems

Description: Led Driver With Pre-Emptive Boost For Ultra-High Dimming Ratio And Low Output Ripple

Download ALT80600KESJSR Model

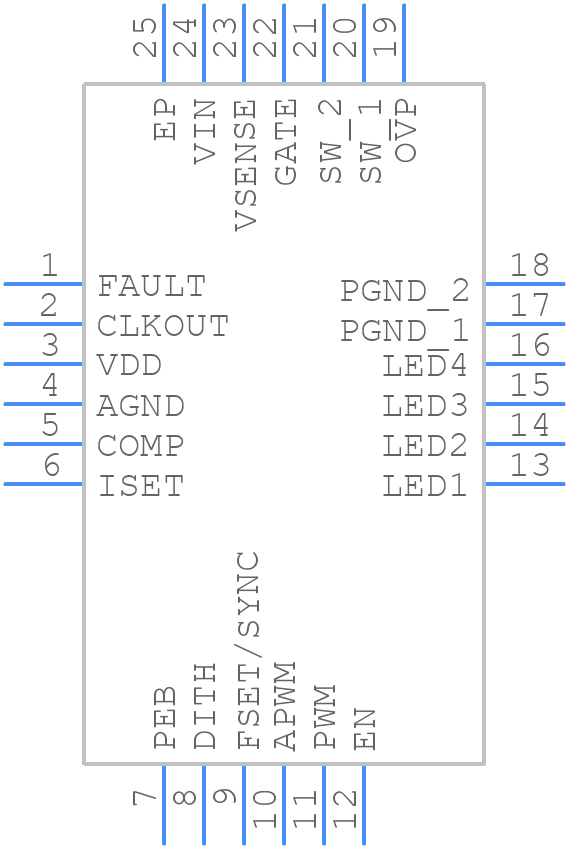

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ALT80600KESJSR - Allegro Microsystems PCB footprint - Other - Other -  Package ES, 24-pin wettable flank QFN with exposed thermal pad
click to zoom
3D Models
ALT80600KESJSR - Allegro Microsystems  - 3D model - Other -  Package ES, 24-pin wettable flank QFN with exposed thermal pad
click to zoom

ALT80600KESJSR Details

  • Manufacturer Part Number:

    ALT80600KESJSR

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    6

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e0

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    16 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • fmax-Min:

    2.3 MHz

ALT80600KESJSR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's current output at high temperatures.
  • Use a shielded cable or twisted pair wiring for the output, and consider adding EMI filters or chokes to the input and output lines. Follow proper PCB layout and grounding techniques to minimize radiation.
  • Yes, but ensure that the devices are properly synchronized and that the output currents are properly summed. Also, consider the increased power dissipation and thermal management requirements.
  • Check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly configured and that the output is not overloaded. Use an oscilloscope to measure the output voltage and current waveforms.
