ALZN5B09W - Panasonic

ALZN5B09W Details

• Manufacturer Part Number:

  ALZN5B09W

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  0

• Additional Feature:

  LOW PROFILE

• Body Breadth:

  12.5 mm

• Body Height:

  15.7 mm

• Body Length or Diameter:

  28.8 mm

• Coil Current(DC)-Max:

  0.044 A

• Coil Operate Voltage(DC):

  6.3 V

• Coil Power:

  400 mW

• Coil Release Voltage(DC):

  0.9 V

• Coil Resistance:

  203 Ω

• Coil Voltage-Nom:

  9 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  4000VA@440VAC

• Contact (AC) Max Rating R Load:

  16A@440VAC

• Contact Current(AC)-Max:

  16 A

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  440 V

• Contact/Output Supply Type:

  AC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

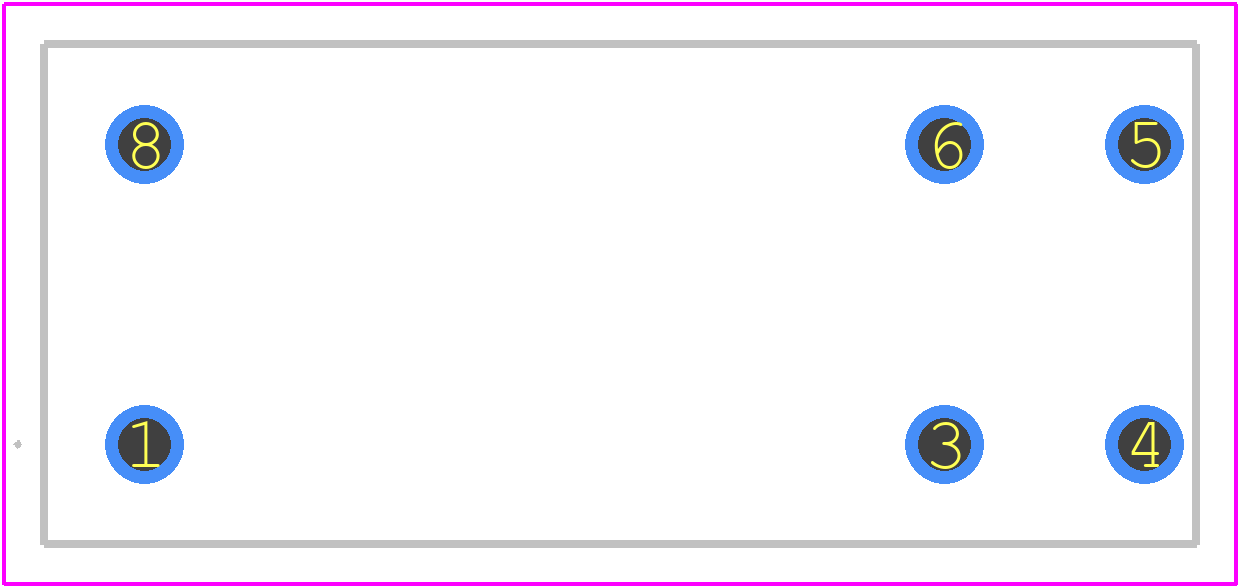

• Number of Terminals:

  6

• Operate Time:

  15 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  28.8mm x 12.5mm x 15.7mm

• Reference Standard:

  CUL; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM A

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  5 ms

• Surface Mount:

  NO

• Terminal Length:

  0.003500127000254001 inch

• Termination Type:

  SOLDER
