A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a ferrite bead or a 10uF capacitor to filter the power supply.
Use the lowest possible clock frequency, disable unnecessary peripherals, and use the power-down mode when not in use. Also, consider using a low-dropout regulator (LDO) to reduce power consumption.
The AM0805AQ can operate from -40°C to 85°C, but the optimal operating temperature range is between 0°C to 70°C for best performance and reliability.
Use a metal shield or a Faraday cage to enclose the AM0805AQ, and ensure that the PCB layout is designed to minimize electromagnetic radiation. Also, use a common-mode choke or a ferrite bead to filter the power supply.
Use a 12MHz crystal oscillator with a load capacitance of 10pF to 20pF, and ensure that the oscillator is connected to the XTAL pins with a series resistor of 1kΩ to 2kΩ.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM0805AQ Overview

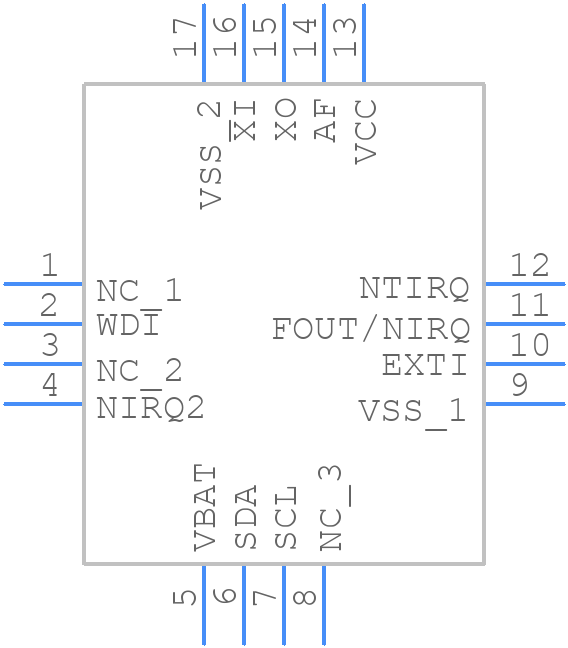

Use the download button to access the AM0805AQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM080,
or try a keyword search, such as Timers or RTCs
