The recommended power-on sequence is to power up the core voltage (VDD) first, followed by the input/output voltage (VDDA) and then the clock signal. This ensures proper initialization of the device.
To optimize power consumption, use the lowest possible clock frequency, disable unused peripherals, and use the power-down modes (e.g., IDLE, STANDBY) when the device is not in use. Additionally, consider using a lower voltage supply and optimizing the system's power management strategy.
The maximum operating temperature range for the AM1705DPTPD4 is -40°C to 85°C. However, it's essential to consider the specific application's requirements and ensure the device is operated within the recommended temperature range to maintain reliability and performance.
To ensure EMC, follow proper PCB design guidelines, use a solid ground plane, and implement adequate shielding and filtering. Additionally, consider using a spread-spectrum clock generator to reduce electromagnetic interference (EMI).
The recommended layout and routing for the power and ground pins involves using wide, low-impedance traces, and placing decoupling capacitors close to the device. It's also essential to separate the power and ground planes to minimize noise and ensure signal integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM1705DPTPD4 Overview

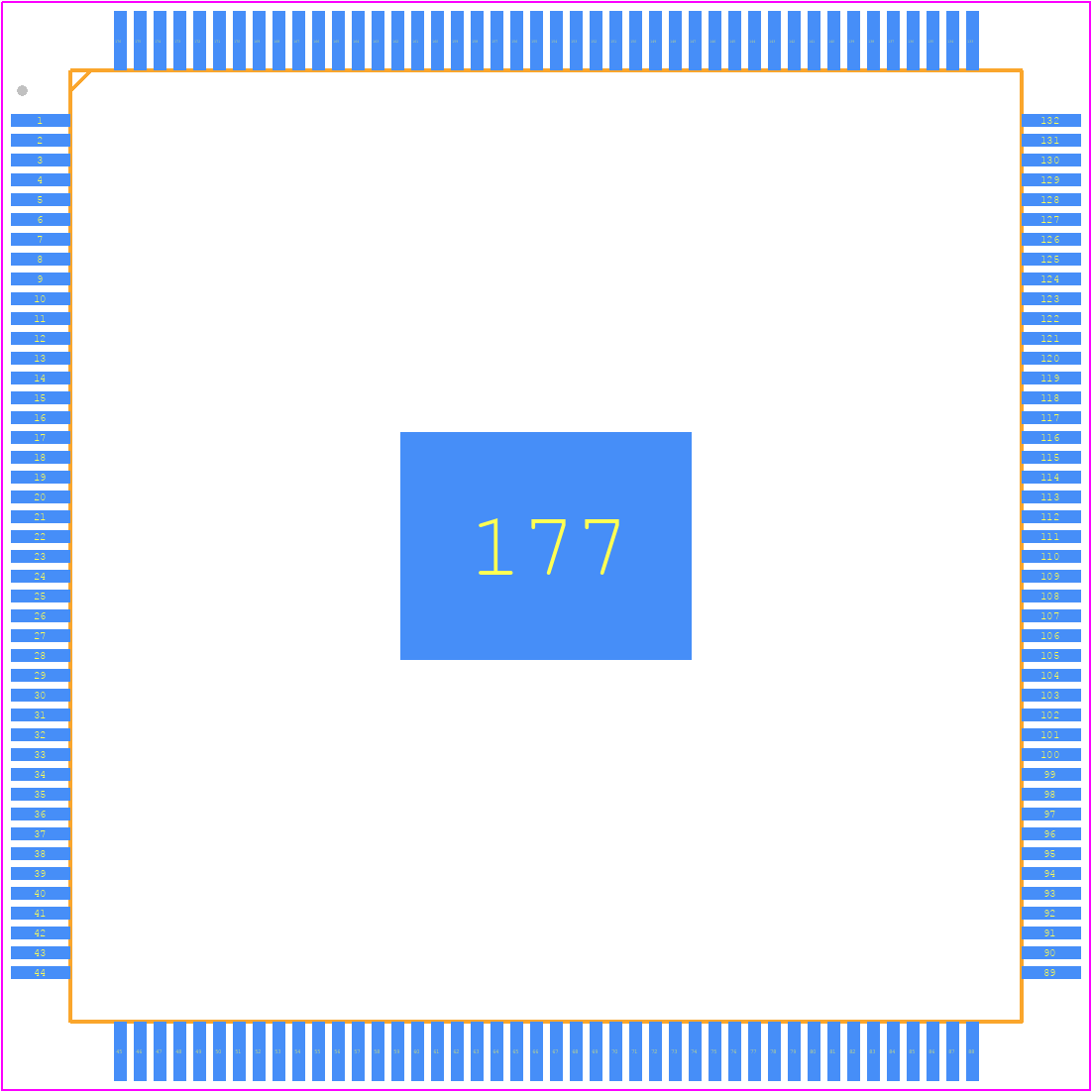

Use the download button to access the AM1705DPTPD4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM170,
or try a keyword search, such as Microprocessors
