AM1802EZCED3 - Texas Instruments

Description: Sitara Processor: ARM9, LPDDR, DDR2, Ethernet

Download AM1802EZCED3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM1802EZCED3 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

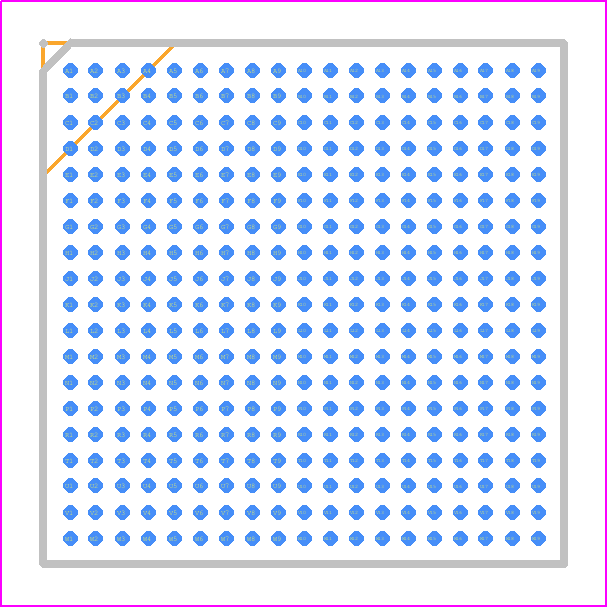

AM1802EZCED3 - Texas Instruments PCB footprint - BGA - BGA - ZCE0361A
click to zoom
3D Models
AM1802EZCED3 - Texas Instruments - 3D model - BGA - ZCE0361A
click to zoom

AM1802EZCED3 Details

  • Manufacturer Part Number:

    AM1802EZCED3

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Address Bus Width:

    23

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    30 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B361

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    80

  • Number of Terminals:

    361

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    172032

  • Seated Height-Max:

    1.3 mm

  • Speed:

    300 MHz

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

AM1802EZCED3 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the AM1802EZCED3 is -40°C to 85°C. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
  • To configure the AM1802EZCED3 for low-power mode, you need to use the Power Management Module (PMM) registers to control the power domains and clock frequencies. You can also use the Low-Power Mode (LPM) feature to reduce power consumption. Refer to the device's technical reference manual for detailed instructions.
  • The maximum clock frequency supported by the AM1802EZCED3 is 456 MHz. However, the actual clock frequency may vary depending on the specific application and operating conditions.
  • To implement secure boot on the AM1802EZCED3, you need to use the device's Security Module (SEC) and configure it to use a secure boot mechanism, such as AES encryption and SHA-256 hashing. You'll also need to generate and store secure boot keys and certificates. Refer to the device's security documentation for detailed instructions.
  • The AM1802EZCED3 has 256 KB of RAM and 256 KB of flash memory. However, the actual available memory may vary depending on the specific configuration and application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM1802EZCED3 Overview

Use the download button to access the AM1802EZCED3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM180, or try a keyword search, such as Microprocessors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
