The recommended crystal oscillator frequency for the AM1808BZCE4 is 24 MHz or 26 MHz, as specified in the datasheet. However, it's essential to note that the device can also operate with other frequencies, but the internal PLL settings may need to be adjusted accordingly.
To configure the AM1808BZCE4 for low-power operation, you can use the Power Management Module (PMM) to control the power modes. The PMM allows you to adjust the voltage and frequency of the CPU, as well as enable or disable peripherals to reduce power consumption. Additionally, you can use the Low Power Mode (LPM) to reduce power consumption when the device is idle.
The maximum operating temperature range for the AM1808BZCE4 is -40°C to 85°C. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures, and it's recommended to operate the device within the recommended temperature range for optimal performance.
The AM1808BZCE4 can be programmed using the Texas Instruments Code Composer Studio (CCS) integrated development environment (IDE). CCS provides a comprehensive development environment for coding, debugging, and testing the device. You can also use other programming tools, such as the TI FlashBurn tool, to program the device.
The maximum clock speed of the AM1808BZCE4 is 456 MHz. However, the device can operate at lower clock speeds to reduce power consumption and heat generation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM1808BZCE4 Overview

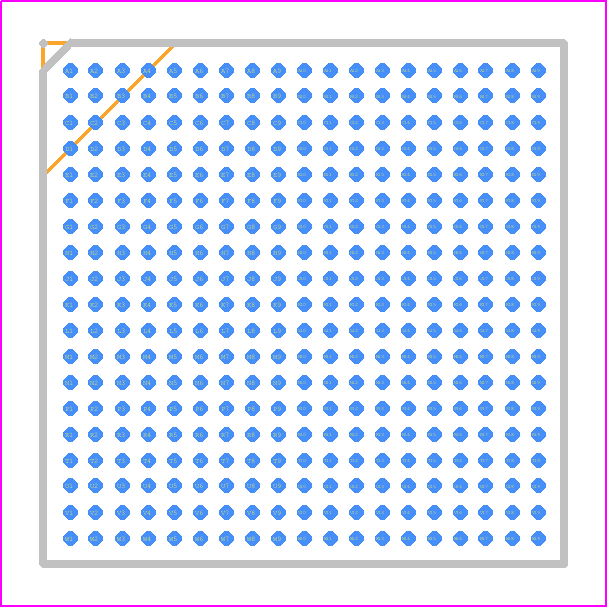

Use the download button to access the AM1808BZCE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM180,
or try a keyword search, such as Microprocessors
