Texas Instruments provides a recommended PCB layout in the AM2431 datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Also, ensure proper thermal design, including a heat sink if necessary, and consider using a thermal interface material to improve heat transfer.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, the recommended operating voltage range is 3.3V to 5V to ensure reliable operation and minimize power consumption.
The AM2431BSDFHIALVR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
The recommended clock frequency for the AM2431BSDFHIALVR is up to 100 MHz, but it can operate at frequencies up to 120 MHz with reduced performance. It's essential to follow the clock frequency guidelines to ensure reliable operation and minimize power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM2431BSDFHIALVR Overview

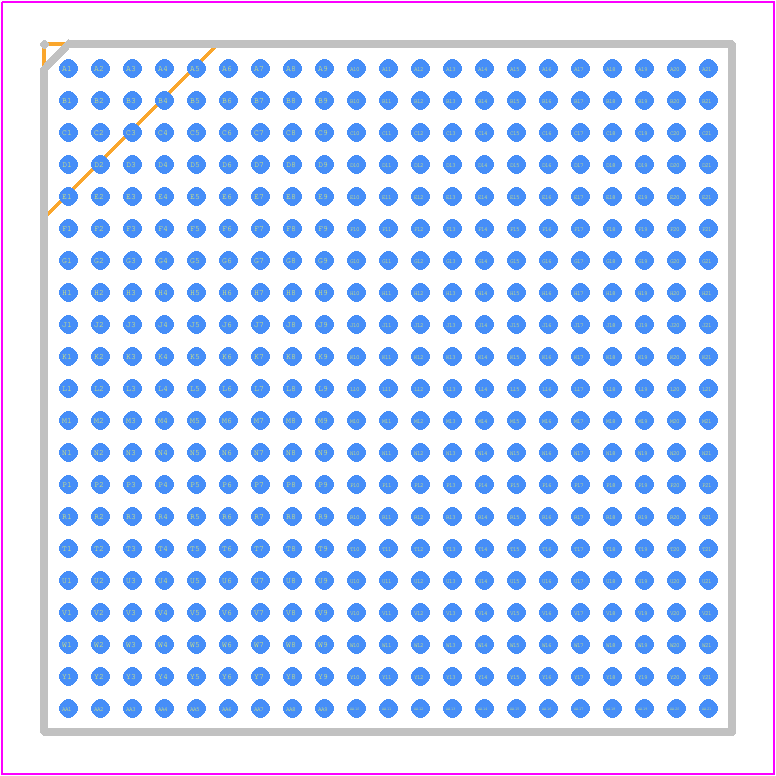

Use the download button to access the AM2431BSDFHIALVR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AM243,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
