AM2432BKEGHIALXR - Texas Instruments

Description: ARM® Cortex®-M4F, ARM® Cortex®-R5F Sitara™ Microcontroller IC 32-Bit Tri-Core 400MHz, 800MHz 256KB (256K x 8) Tightly Coupled Memory (TCM) 293-FC/CSP (11x11)

Download AM2432BKEGHIALXR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM2432BKEGHIALXR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

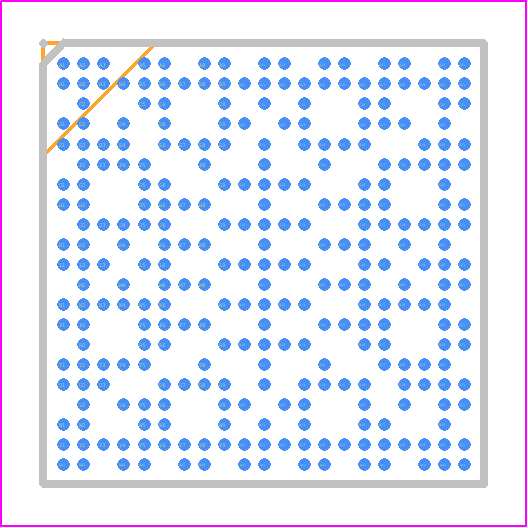

AM2432BKEGHIALXR - Texas Instruments PCB footprint - BGA - BGA - 11mm x 11mm
click to zoom
3D Models
AM2432BKEGHIALXR - Texas Instruments - 3D model - BGA - 11mm x 11mm
click to zoom

AM2432BKEGHIALXR Details

  • Manufacturer Part Number:

    AM2432BKEGHIALXR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Clock Frequency-Max:

    400 MHz

  • JESD-30 Code:

    S-PBGA-B293

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    293

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA293,21X21,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    0.895 V

  • Supply Voltage-Min:

    0.81 V

  • Supply Voltage-Nom:

    0.85 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM2432BKEGHIALXR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guide in their application notes (SLVAE67) and layout files (AM2432BKEGHIALXR.tbrd) to ensure optimal performance and thermal dissipation.
  • The AM2432BKEGHIALXR has various power-saving modes and configuration options. Refer to the device's technical reference manual (SPRUHZ6) and power management guide (SLVAE68) for detailed information on configuring the device for optimal power consumption.
  • Texas Instruments provides guidelines for EMI and EMC considerations in their application notes (SLVAE69) and design guides (SPRUHZ7). It's essential to follow these guidelines to ensure compliance with regulatory requirements and optimal system performance.
  • Texas Instruments offers various debugging tools and resources, including the XDS560v2 emulator, Code Composer Studio (CCS), and technical support forums. Refer to the device's technical reference manual (SPRUHZ6) and debugging guides (SLVAE70) for detailed information on troubleshooting and debugging.
  • Texas Instruments provides various SDKs and tools, including the Sitara SDK, Processor SDK, and Code Composer Studio (CCS), to support software development for the AM2432BKEGHIALXR. Refer to the device's software development page on the Texas Instruments website for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM2432BKEGHIALXR Overview

Use the download button to access the AM2432BKEGHIALXR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM243, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
