Texas Instruments provides a recommended PCB layout in the AM2432BSFFHIALVR datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Also, ensure proper thermal design, including a heat sink or thermal interface material, and consider using a thermistor or temperature sensor to monitor the device temperature.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 25V or higher. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended to minimize voltage ripple and ensure stable operation.
To optimize the output filter design, use a combination of capacitors and inductors to filter out high-frequency noise and ripple. A recommended output filter configuration is a 10uF capacitor in parallel with a 1uH inductor, followed by a 10uF capacitor. This configuration helps to achieve a low output voltage ripple and ensures stable operation.
To prevent damage to the AM2432BSFFHIALVR, follow a controlled PCB cleaning and assembly process. Use a no-clean or low-residue flux, and avoid using ultrasonic cleaning or high-pressure washing. Also, ensure that the PCB is baked at a low temperature (125°C) for 2-4 hours to remove any moisture before assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM2432BSFFHIALVR Overview

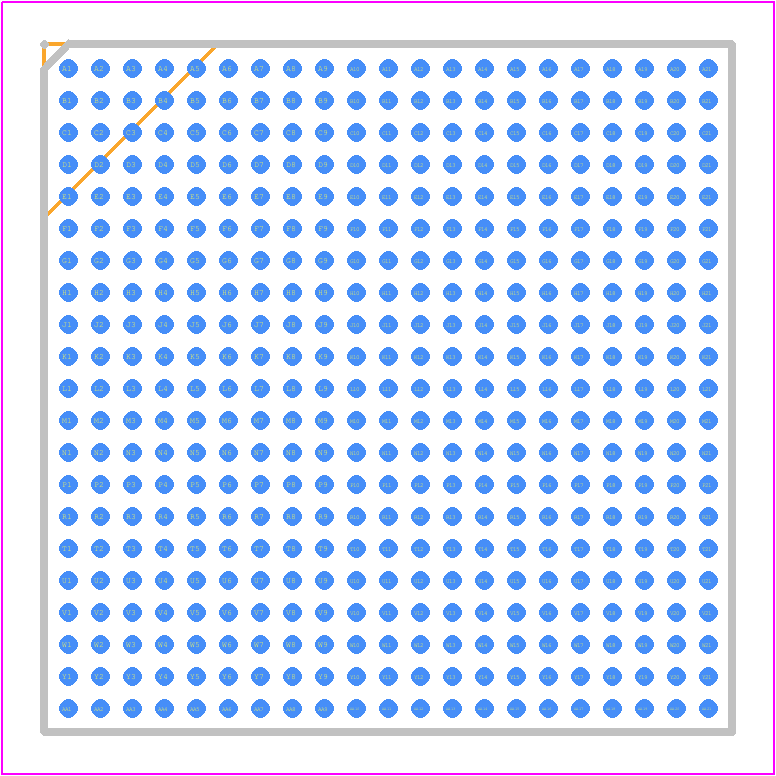

Use the download button to access the AM2432BSFFHIALVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM243,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
