Description:AM2634COKFHMZCZRQ1 Texas Instruments ARM Microcontrollers - MCU Automotive quad-core Arm Cortex-R5F MCU up to 400 MHz with real-time control and security ...
Texas Instruments provides a recommended PCB layout in the AM2634 datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Also, ensure proper thermal design, including a heat sink if necessary, and consider using a thermal interface material (TIM) to improve heat transfer.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended to minimize voltage ripple and ensure stable operation.
To optimize the output filter design, use a combination of capacitors and inductors to filter out high-frequency noise and ripple. A recommended output filter configuration is a 10uF capacitor in parallel with a 1uH inductor, followed by a 10uF capacitor. Adjust the values based on the specific application requirements and output voltage.
The maximum output current capability of the AM2634 is 3A. However, the actual output current capability may be limited by the thermal design, input voltage, and output voltage. Ensure that the device is operated within the recommended operating conditions to avoid overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM2634COKFHMZCZRQ1 Overview

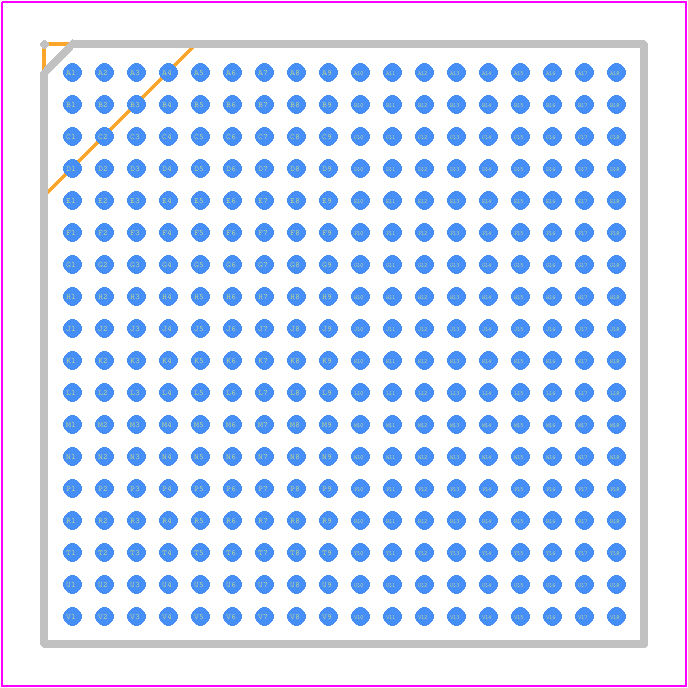

Use the download button to access the AM2634COKFHMZCZRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM263,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
