AM3894CCYGA120 - Texas Instruments

Description: Microprocessors - MPU Sitara ARM MPU

Download AM3894CCYGA120 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM3894CCYGA120 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

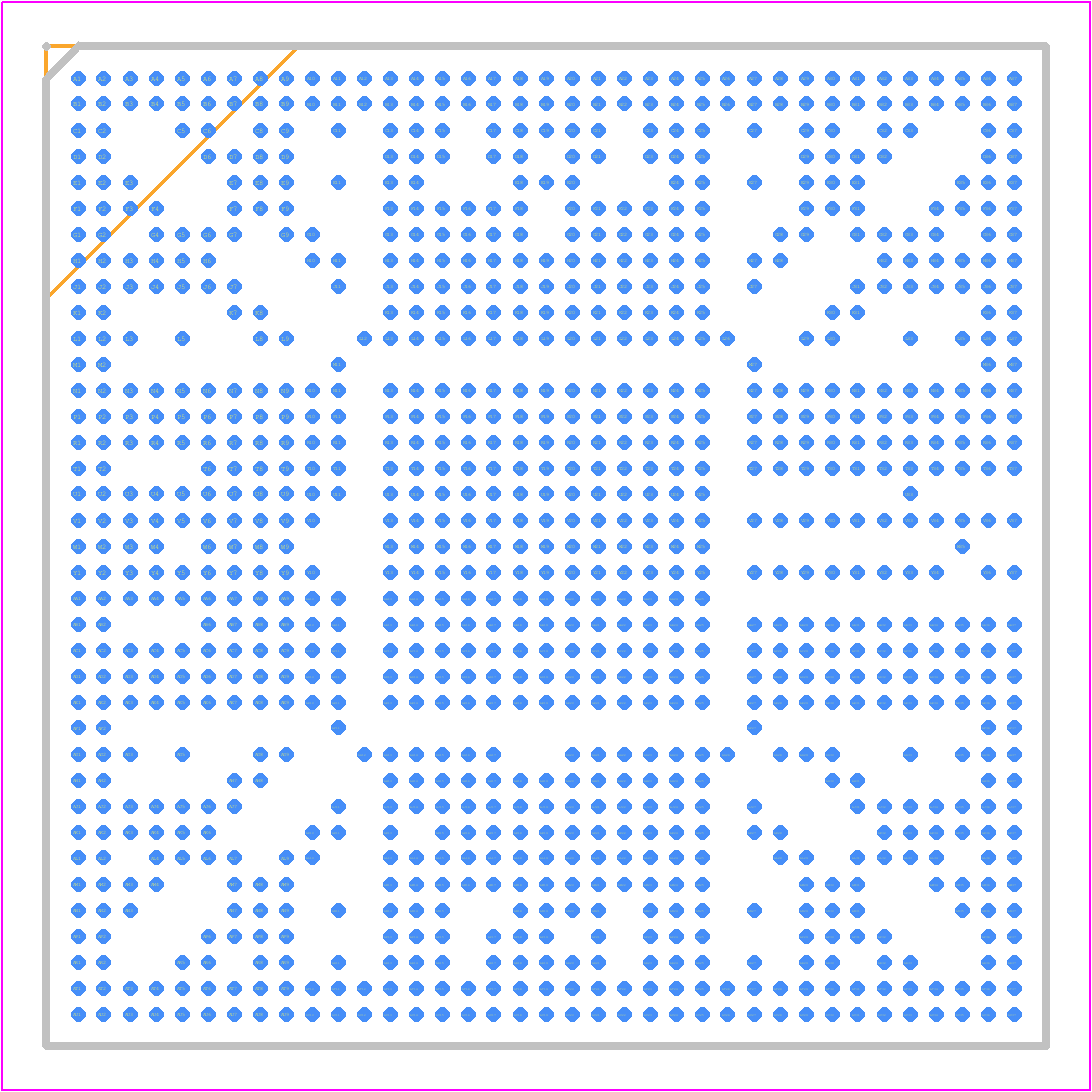

AM3894CCYGA120 - Texas Instruments PCB footprint - BGA - BGA - CYG (S-PBGA-N1031)
click to zoom
3D Models
AM3894CCYGA120 - Texas Instruments - 3D model - BGA - CYG (S-PBGA-N1031)
click to zoom

AM3894CCYGA120 Details

  • Manufacturer Part Number:

    AM3894CCYGA120

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    1031

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B1031

  • JESD-609 Code:

    e1

  • Length:

    25 mm

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    1031

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA1031,37X37,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.31 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    25 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM3894CCYGA120 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the core voltage (VDD_CORE) first, followed by the I/O voltage (VDD_MPU). This ensures that the internal voltage regulators are properly enabled.
  • The clocking system can be configured using the Clock Domain Control (CDC) module. The CDC module allows you to configure the clock sources, clock frequencies, and clock domains. Refer to the TRM (Technical Reference Manual) for detailed information on clock configuration.
  • The maximum operating temperature range for the AM3894CCYGA120 is -40°C to 105°C. However, it's recommended to operate the device within the recommended operating temperature range of 0°C to 90°C for optimal performance and reliability.
  • The AM3894CCYGA120 has a built-in Power and Sleep Controller (PSC) module that allows you to implement power management. The PSC module provides various power modes, including idle, standby, and shutdown modes. You can configure the power modes using the PSC registers.
  • The maximum current draw for the AM3894CCYGA120 depends on the operating frequency, voltage, and temperature. Refer to the datasheet for the maximum current draw specifications. Typically, the maximum current draw is around 1.5A for the core voltage (VDD_CORE) and 0.5A for the I/O voltage (VDD_MPU).
