AM4372BZDN60 - Texas Instruments

Description: Microprocessors - MPU Sitara Processor: ARM Cortex-A9, Secure Boot 491-NFBGA 0 to 90

Download AM4372BZDN60 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM4372BZDN60 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

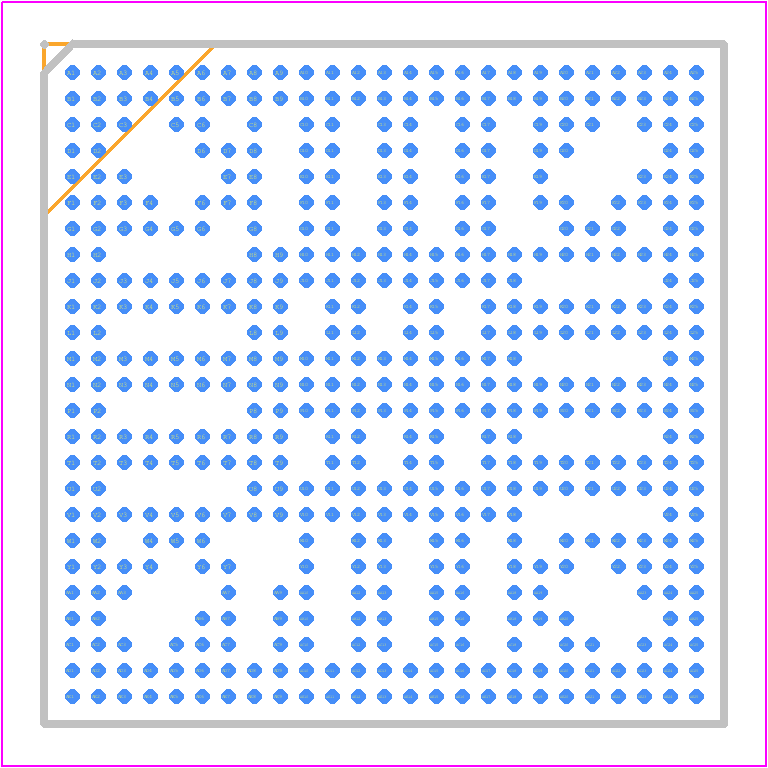

AM4372BZDN60 - Texas Instruments PCB footprint - BGA - BGA - ZDN (S-PBGA-N491)
click to zoom
3D Models
AM4372BZDN60 - Texas Instruments - 3D model - BGA - ZDN (S-PBGA-N491)
click to zoom

AM4372BZDN60 Details

  • Manufacturer Part Number:

    AM4372BZDN60

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2016-08-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B491

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    491

  • Operating Temperature-Max:

    90 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA491,25X25,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max:

    1.144 V

  • Supply Voltage-Min:

    1.056 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM4372BZDN60 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the core voltage (VDD_CORE) first, followed by the I/O voltage (VDD_MPU) and then the DDR voltage (VDD_DDR). This ensures proper power-up and reduces the risk of latch-up or damage to the device.
  • The clocking system on the AM4372BZDN60 is configured using the Clock Domain Control Module (CDCM) and the Power, Reset, and Clock Management (PRCM) module. The CDCM generates the clock signals for the device, while the PRCM controls the power modes and reset signals. Refer to the TRM (Technical Reference Manual) for detailed configuration information.
  • The maximum operating frequency of the AM4372BZDN60 is 1 GHz. However, the actual operating frequency may vary depending on the specific use case, thermal conditions, and power management settings.
  • Secure boot on the AM4372BZDN60 can be implemented using the Trusted Execution Environment (TEE) and the Secure Boot Loader (SBL). The TEE provides a secure environment for booting the device, while the SBL ensures that only authorized firmware is executed. Refer to the Secure Boot documentation and the TEE User's Guide for detailed implementation information.
  • The AM4372BZDN60 supports up to 2 GB of DDR3 or DDR3L memory. However, the actual memory capacity may vary depending on the specific use case and system design.
