AM5718AABCX - Texas Instruments

Description: Sitara Processor: ARM Cortex-A15 & DSP, Multimedia

Download AM5718AABCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM5718AABCX - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

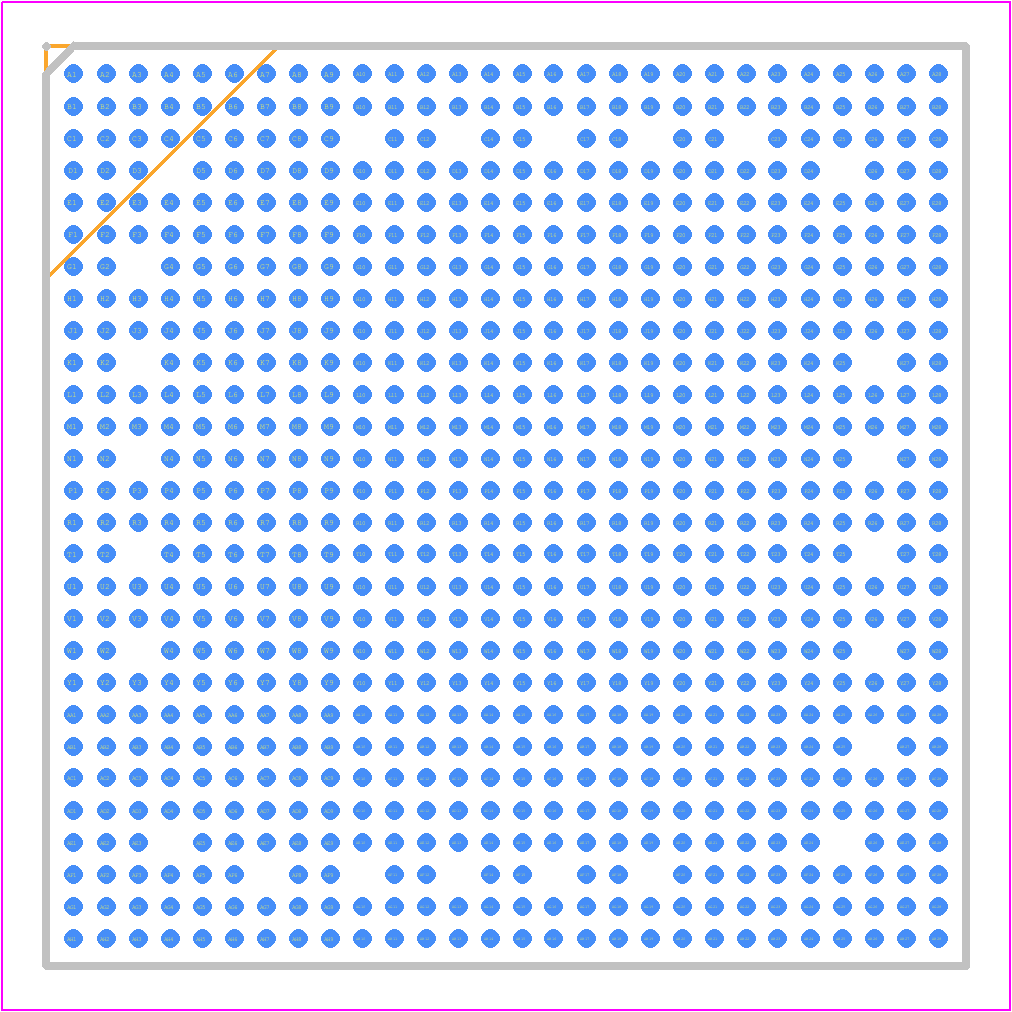

AM5718AABCX - Texas Instruments PCB footprint - BGA - BGA - ABC0760A 760 PIN
click to zoom
3D Models
AM5718AABCX - Texas Instruments - 3D model - BGA - ABC0760A 760 PIN
click to zoom

AM5718AABCX Details

  • Manufacturer Part Number:

    AM5718AABCX

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA, BGA760,28X28,32

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2016-12-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B760

  • JESD-609 Code:

    e1

  • Length:

    23 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    760

  • Operating Temperature-Max:

    90 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA760,28X28,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.96 mm

  • Supply Voltage-Max:

    1.2 V

  • Supply Voltage-Min:

    1.11 V

  • Supply Voltage-Nom:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    23 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM5718AABCX Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the core voltage (VDD_CORE) first, followed by the input/output voltage (VDD_IO). This ensures that the internal voltage regulators are properly enabled before the I/Os are powered up.
  • The clocking system on the AM5718AABCX can be configured using the Clock Domain Control Module (CDCM) and the Power, Reset, and Clock Management (PRCM) module. The CDCM generates the clock signals for the various domains, while the PRCM controls the clock sources, dividers, and multiplexers.
  • The maximum operating frequency of the AM5718AABCX is 1.5 GHz. However, the actual operating frequency may be limited by the specific use case, thermal design, and power consumption constraints.
  • Secure boot on the AM5718AABCX can be implemented using the Trusted Execution Environment (TEE) and the Secure Boot Loader (SBL). The TEE provides a secure environment for booting, while the SBL ensures that the boot process is secure and authenticated.
  • The AM5718AABCX can support up to 2 GB of external DDR3 or DDR3L memory. However, the actual amount of memory that can be connected depends on the specific use case and the memory configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM5718AABCX Overview

Use the download button to access the AM5718AABCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM571, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
